Relay-UPFITTER Park Lamps (Standard) Connector End View (D0029A)

Harness-Family: PDC_Front_Aux

Color: BLACK

Gender: MALE

Part Number: 1/11299/85

Part Description: Not Available

Connector No: D0029A

Option: Standard

Repair Kit Part Number: Not Available

Cavity Count: null

Fig 1: Relay-Upfitter Park Lamps Connector End View (Standard)

Courtesy of CHRYSLER

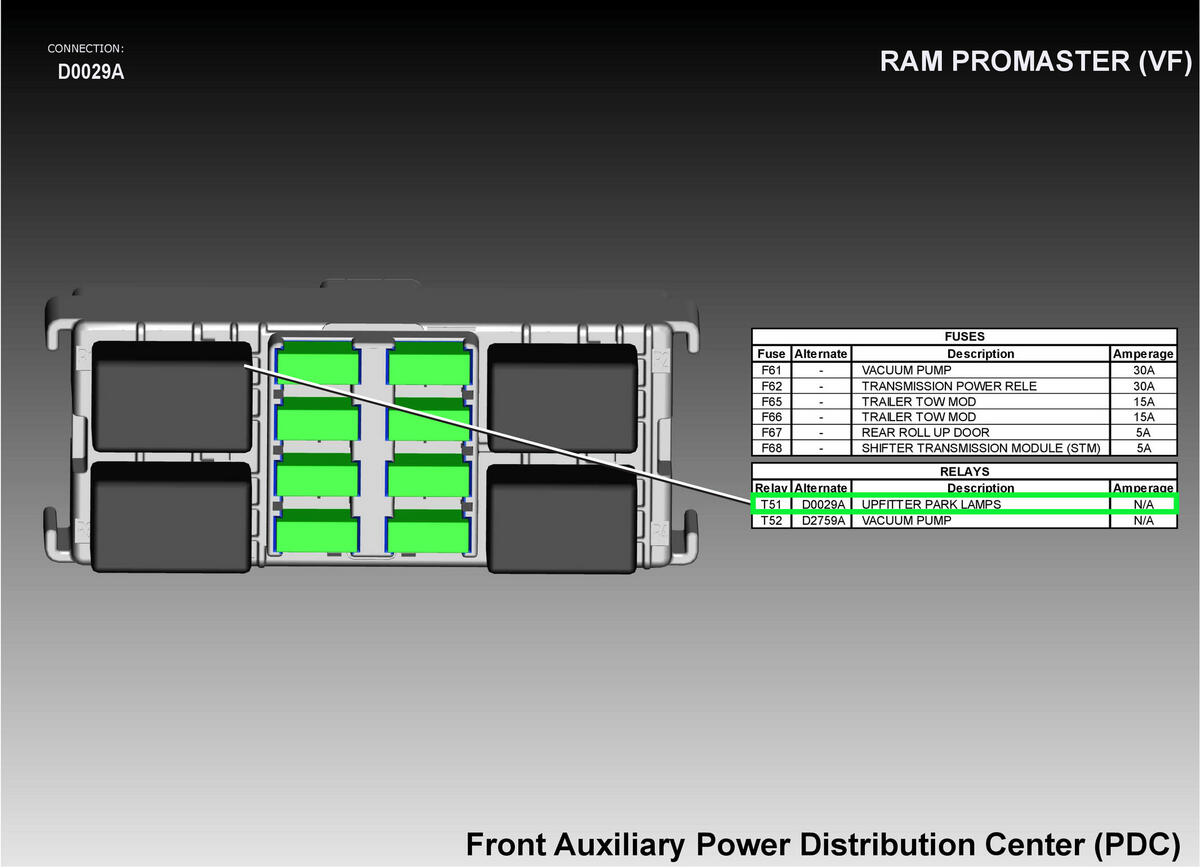

Fig 2: Relay-Upfitter Park Lamps Component Location (Standard)

Courtesy of CHRYSLER

Circuit

Wire Color

Gauge/Size

Function

Option

A717

INTERNAL

FUSED B(+)

N/A

L779

INTERNAL

PARK LAMP RELAY CONTROL

N/A

A717

INTERNAL

FUSED B(+)

N/A

L17

INTERNAL

PARK LAMP FEED

N/A

⁽¹⁾	Pins not listed are not used for this connector
