Relay-Seat Heater (Standard) Connector End View (D0036A)

Harness-Family: PDC_Rear

Color: BLACK

Gender: MALE

Part Number: 1/11299/85

Part Description: Not Available

Connector No: D0036A

Option: Standard

Repair Kit Part Number: Not Available

Cavity Count: null

Fig 1: Relay-Seat Heater Connector End View (Standard)

Courtesy of CHRYSLER

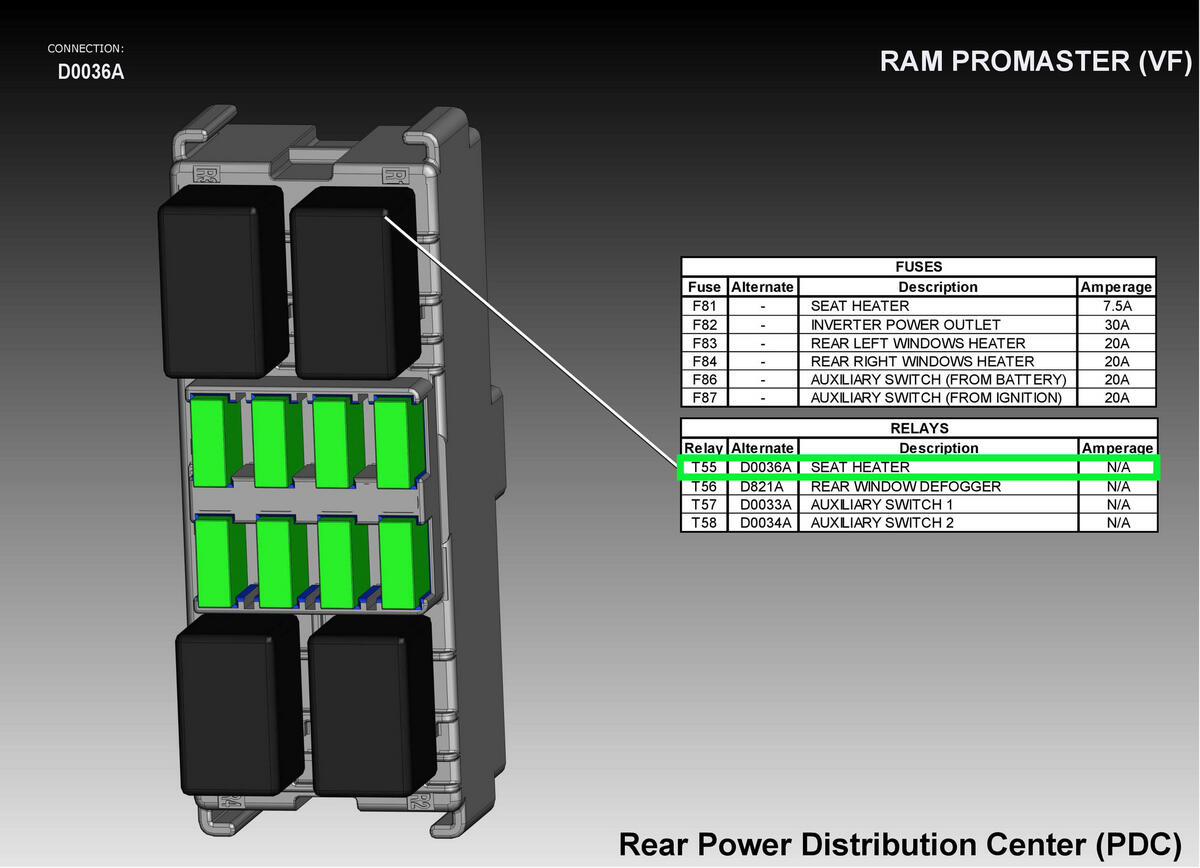

Fig 2: Relay-Seat Heater Component Location (Standard)

Courtesy of CHRYSLER

Circuit

Wire Color

Gauge/Size

Function

Option

A306

INTERNAL

FUSED B(+)

REAR WINDOW DEFROSTER/HEATED FRONT SEATS/115V POWER OUTLET

Z940

INTERNAL

GROUND

HEATED FRONT SEATS

F722

INTERNAL

IGNITION SWITCH OUTPUT (RUN)

N/A

A981

INTERNAL

FUSED B(+)

HEATED FRONT SEATS

⁽¹⁾	Pins not listed are not used for this connector
