Mirror-Outside Rearview-Passenger C2 (Standard) Connector End View (D3832B)

Harness-Family: Door_Front_Right

Color: GRAY

Gender: MALE

Part Number: 1/11472/96

Part Description: Not Available

Connector No: D3832B

Option: Standard

Repair Kit Part Number: Not Available

Cavity Count: null

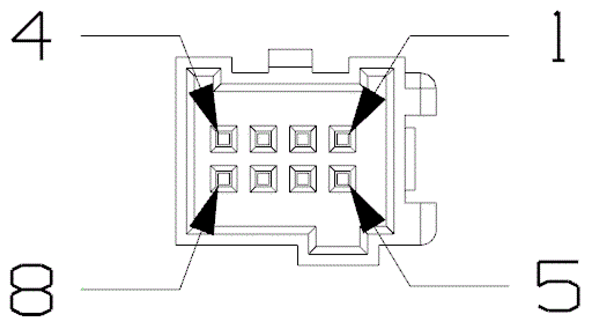

Fig 1: Mirror-Outside Rearview-Passenger C2 Connector End View (Standard)

Courtesy of CHRYSLER

Fig 2: Mirror-Outside Rearview-Passenger C2 Component Location (Standard)

Courtesy of CHRYSLER

Circuit

Wire Color

Gauge/Size

Function

Option

P695

GY/BN

0.5

PASSENGER MIRROR FOLD DRIVER

POWER FOLDING HEATED MIRRORS

Z216

0.5

GROUND

POWER FOLDING HEATED MIRRORS

P712

WH/YE

0.35

RIGHT BLIND SPOT INDICATOR DRIVER

BLIND SPOT AND CROSS PATH

Z930

BK/VT

0.35

GROUND

BLIND SPOT AND CROSS PATH

⁽¹⁾	Pins not listed are not used for this connector
