Mirror-Outside Rearview-Passenger C1 (Standard) Connector End View (D3832A)

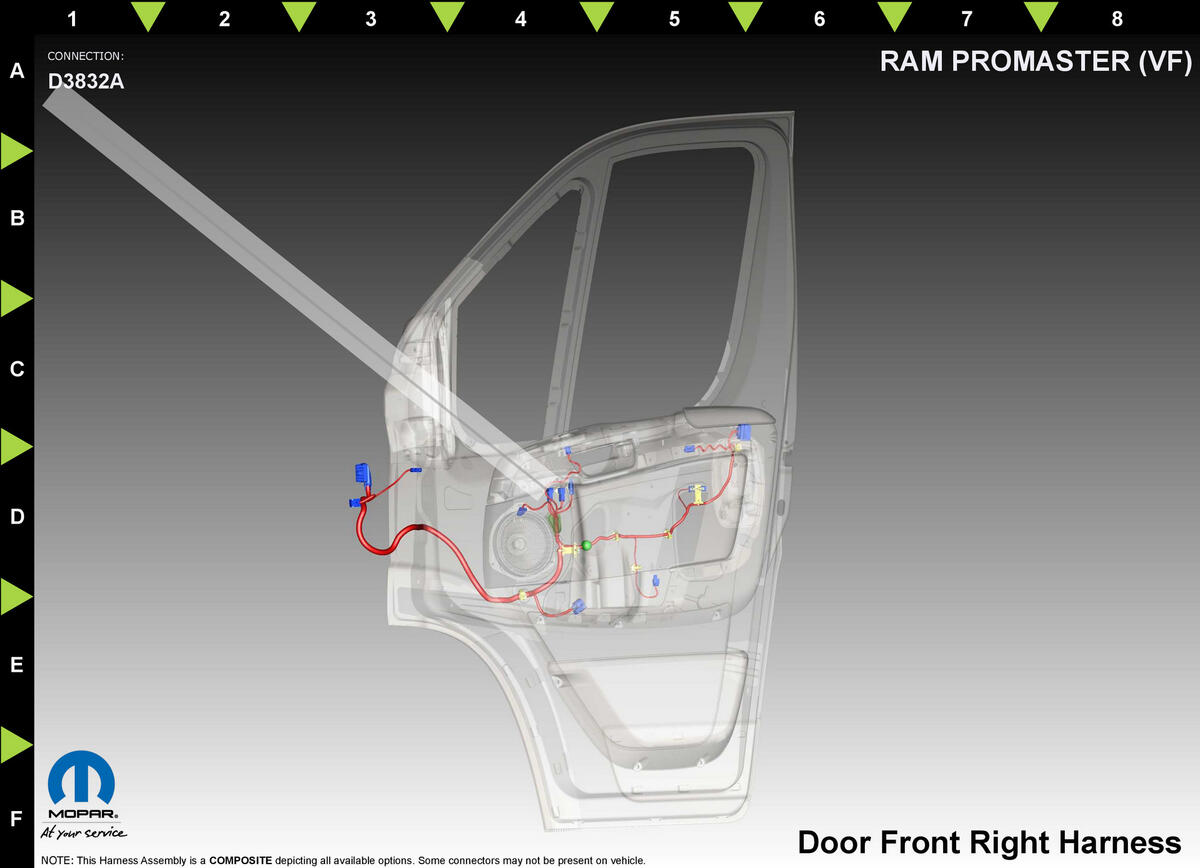

Harness-Family: Door_Front_Right
Color: BLACK
Gender: MALE
Part Number: 1/11471/97
Part Description: Not Available
Connector No: D3832A
Option: Standard
Repair Kit Part Number: Not Available
Cavity Count: null
| Pin | Circuit | Wire Color | Gauge/Size | Function | Option | ||
|---|---|---|---|---|---|---|---|
| 1 | P502 | VT/WH | 0.35 | PASSENGER MIRROR TURN SIGNAL DRIVER | N/A | ||
| 2 | Z930 | BK | 0.5 | GROUND | N/A | ||
| 3 | P74 | WH/RD | 0.35 | PASSENGER MIRROR HORIZONTAL DRIVER | WIDE POWER HEATED MIRRORS | ||
| 4 | P72 | BN/BK | 0.35 | PASSENGER MIRROR VERTICAL DRIVER | WIDE POWER HEATED MIRRORS | ||
| 5 | P68 | WH/GN | 0.35 | PASSENGER MIRROR HORIZONTAL POSITION SIGNAL | WIDE POWER HEATED MIRRORS | ||
| 6 | P64 | WH/VT | 0.35 | PASSENGER MIRROR VERTICAL POSITION SIGNAL | WIDE POWER HEATED MIRRORS | ||
| 7 | P76 | GY/BK | 0.35 | MIRROR COMMON DRIVER | WIDE POWER HEATED MIRRORS | ||
| 8 | C912 | RD/GN | 0.75 | PASSENGER MIRROR HEATER SUPPLY | WIDE POWER HEATED MIRRORS | ||
|
|||||||
