I278C (Standard) Connector End View (I278C)

Harness-Family: Body_Right

Color: WHITE

Gender: FEMALE

Part Number: 1/13068/90

Part Description: Not Available

Connector No: I278C

Option: Standard

Repair Kit Part Number: Not Available

Cavity Count: null

Fig 1: I278c Connector End View (Standard)

GCWD1000010

Courtesy of CHRYSLER

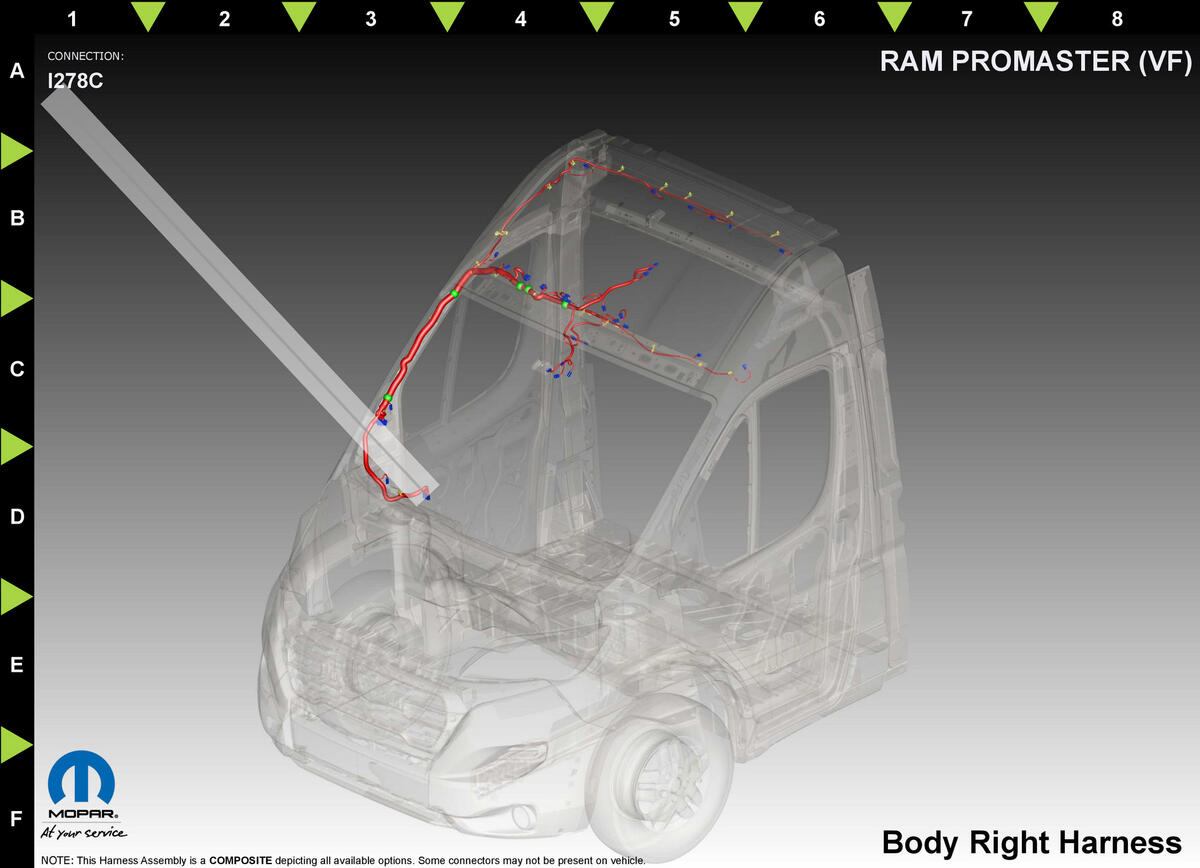

Fig 2: I278c Component Location (Standard)

GCWD1293279

Courtesy of CHRYSLER

Pin

Circuit

Wire Color

Gauge/Size

Function

Option

1

D5

BK

0.81

ANTENNA SIGNAL

HIGH ROOF

⁽¹⁾	Pins not listed are not used for this connector
