I278B (Standard) Connector End View (I278B)

Harness-Family: Body_Right

Color: BORDEAUX

Gender: FEMALE

Part Number: 1/13072/95

Part Description: Not Available

Connector No: I278B

Option: Standard

Repair Kit Part Number: Not Available

Cavity Count: null

Fig 1: I278b Connector End View (Standard)

GCWD1245117

Courtesy of CHRYSLER

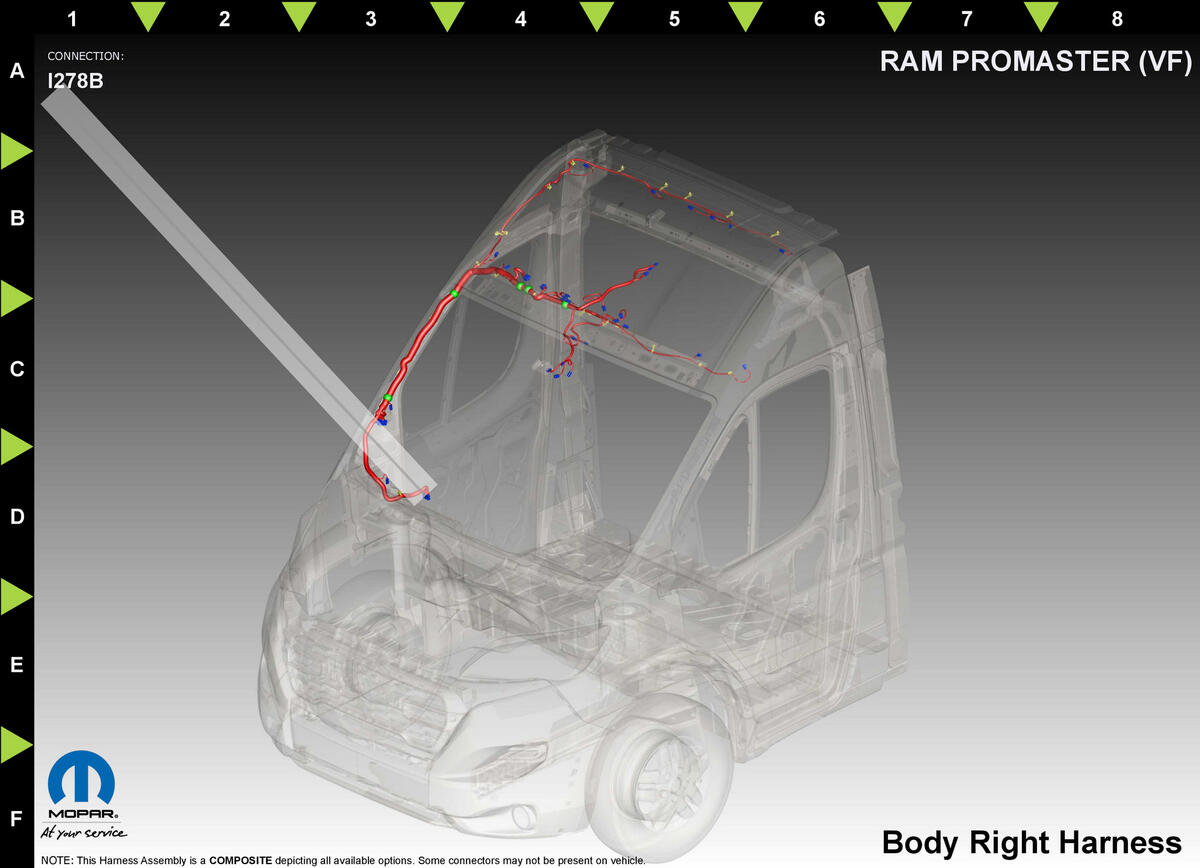

Fig 2: I278b Component Location (Standard)

GCWD1293275

Courtesy of CHRYSLER

Pin

Circuit

Wire Color

Gauge/Size

Function

Option

1

D7

BK

1.1

CELLULAR ANTENNA SIGNAL

HIGH ROOF TELEMATICS

⁽¹⁾	Pins not listed are not used for this connector
