I248B (Standard) Connector End View (I248B)

Harness-Family: Body_Rear_Upper

Color: BLACK

Gender: MALE

Part Number: 1/24530/87

Part Description: Not Available

Connector No: I248B

Option: Standard

Repair Kit Part Number: Not Available

Cavity Count: null

Fig 1: I248b Connector End View (Standard)

GCWD1011308

Courtesy of CHRYSLER

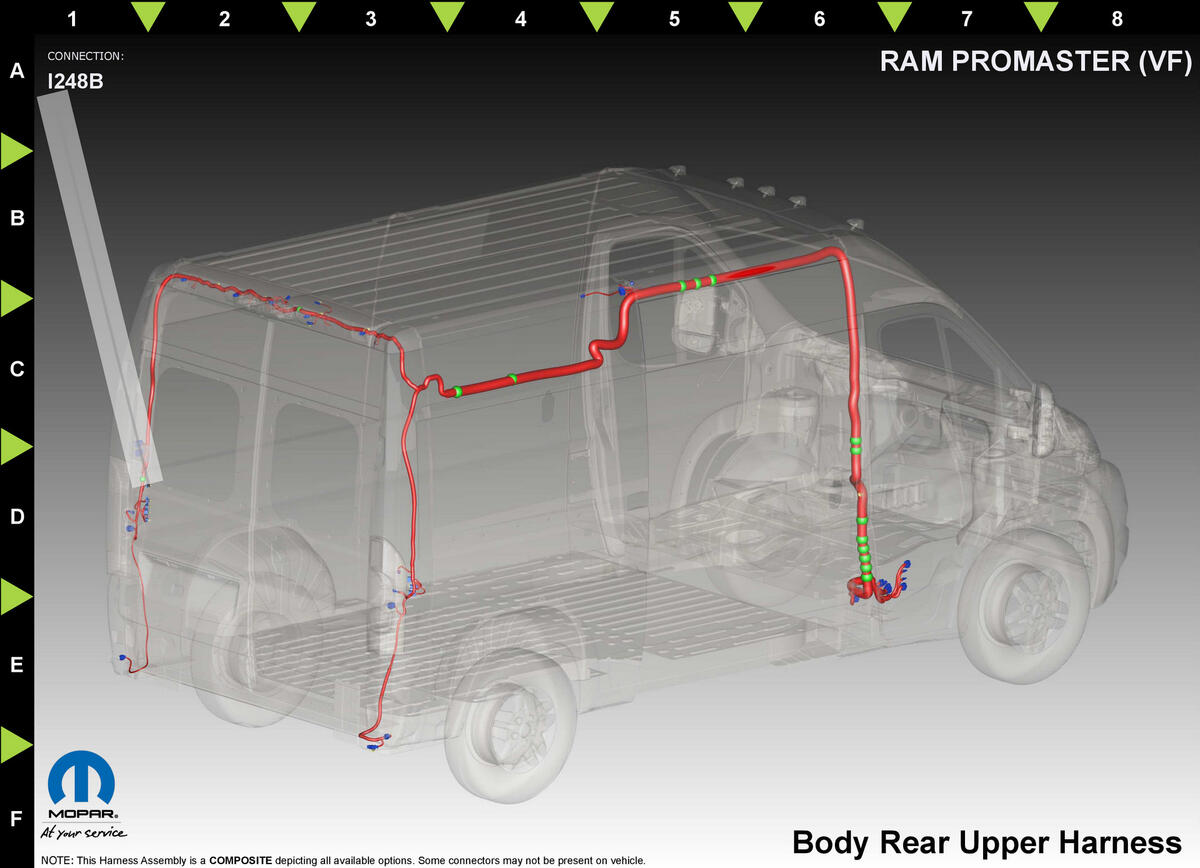

Fig 2: I248b Component Location (Standard)

GCWD1293763

Courtesy of CHRYSLER

Pin

Circuit

Wire Color

Gauge/Size

Function

Option

1

B400

DB

2.5

TRAILER TOW ELECTRIC BRAKE OUTPUT

HIGH ROOF EXTENDED WHEEL BASE TRAILER TOW

⁽¹⁾	Pins not listed are not used for this connector
