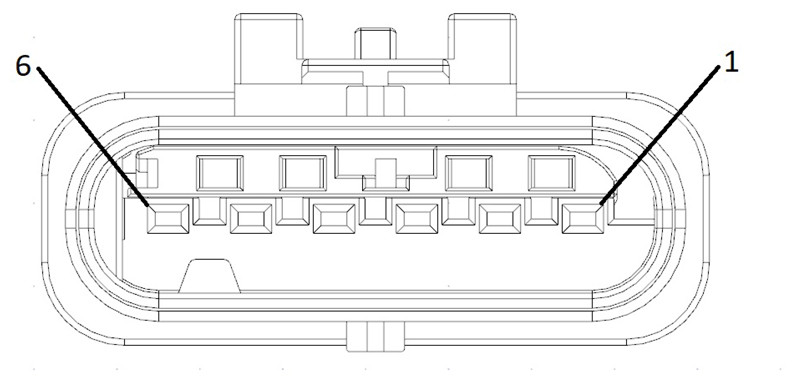

I248A (Standard) Connector End View (I248A)

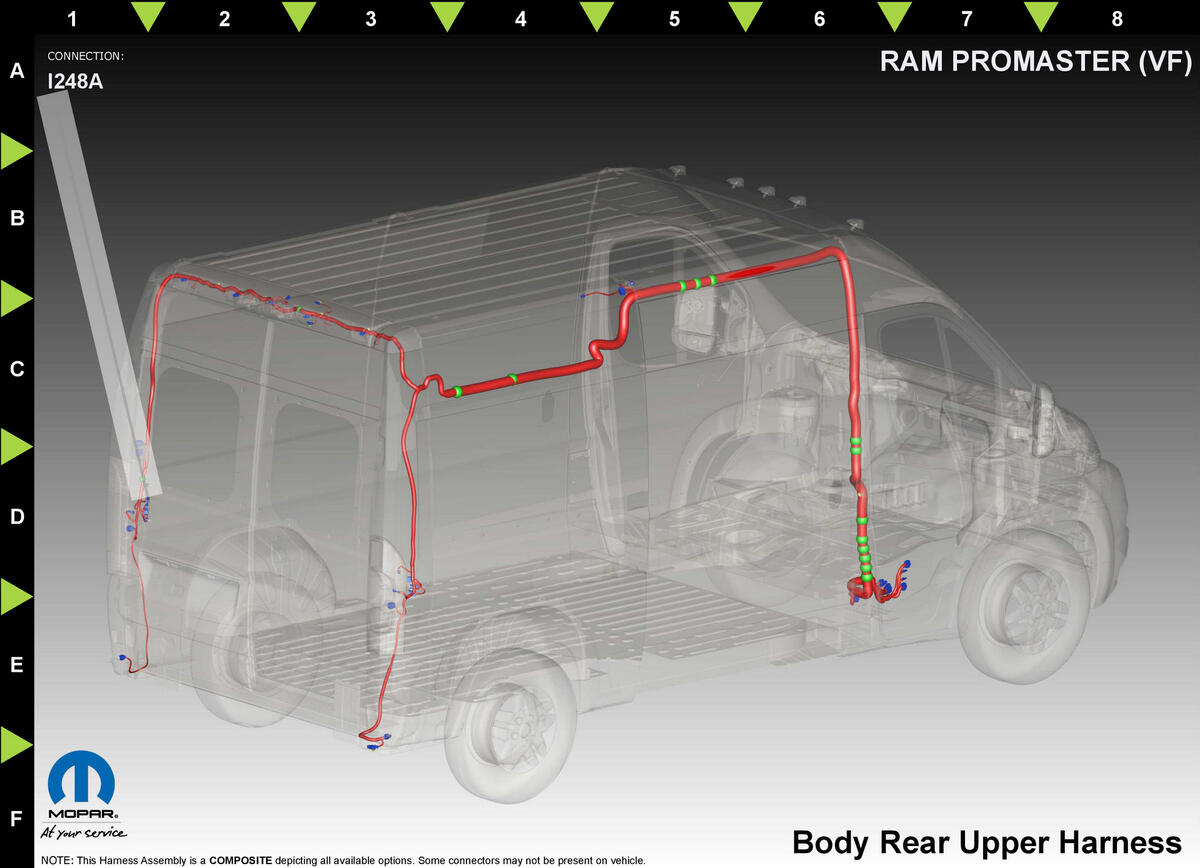

Harness-Family: Body_Rear_Upper
Color: BLACK
Gender: MALE
Part Number: 1/13952/97
Part Description: Not Available
Connector No: I248A
Option: Standard
Repair Kit Part Number: Not Available
Cavity Count: null
| Pin | Circuit | Wire Color | Gauge/Size | Function | Option | ||
|---|---|---|---|---|---|---|---|
| 1 | W751 | DB/RD | 0.75 | TRAILER TOW BACKUP LAMP FEED | HIGH ROOF EXTENDED WHEEL BASE TRAILER TOW | ||
| 2 | Z367 | BK | 0.75 | GROUND | HIGH ROOF EXTENDED WHEEL BASE TRAILER TOW | ||
| 3 | W752 | WH/VT | 0.75 | TRAILER TOW RIGHT STOP/TURN SIGNAL | HIGH ROOF EXTENDED WHEEL BASE TRAILER TOW | ||
| 4 | A100 | RD/WH | 0.5 | FUSED B(+) | HIGH ROOF EXTENDED WHEEL BASE TRAILER TOW | ||
| 5 | W756 | WH/GN | 0.75 | TRAILER TOW PARK LIGHT | HIGH ROOF EXTENDED WHEEL BASE TRAILER TOW | ||
| 6 | W753 | DB/WH | 0.75 | TRAILER TOW LEFT STOP/TURN SIGNAL | HIGH ROOF EXTENDED WHEEL BASE TRAILER TOW | ||
|
|||||||
