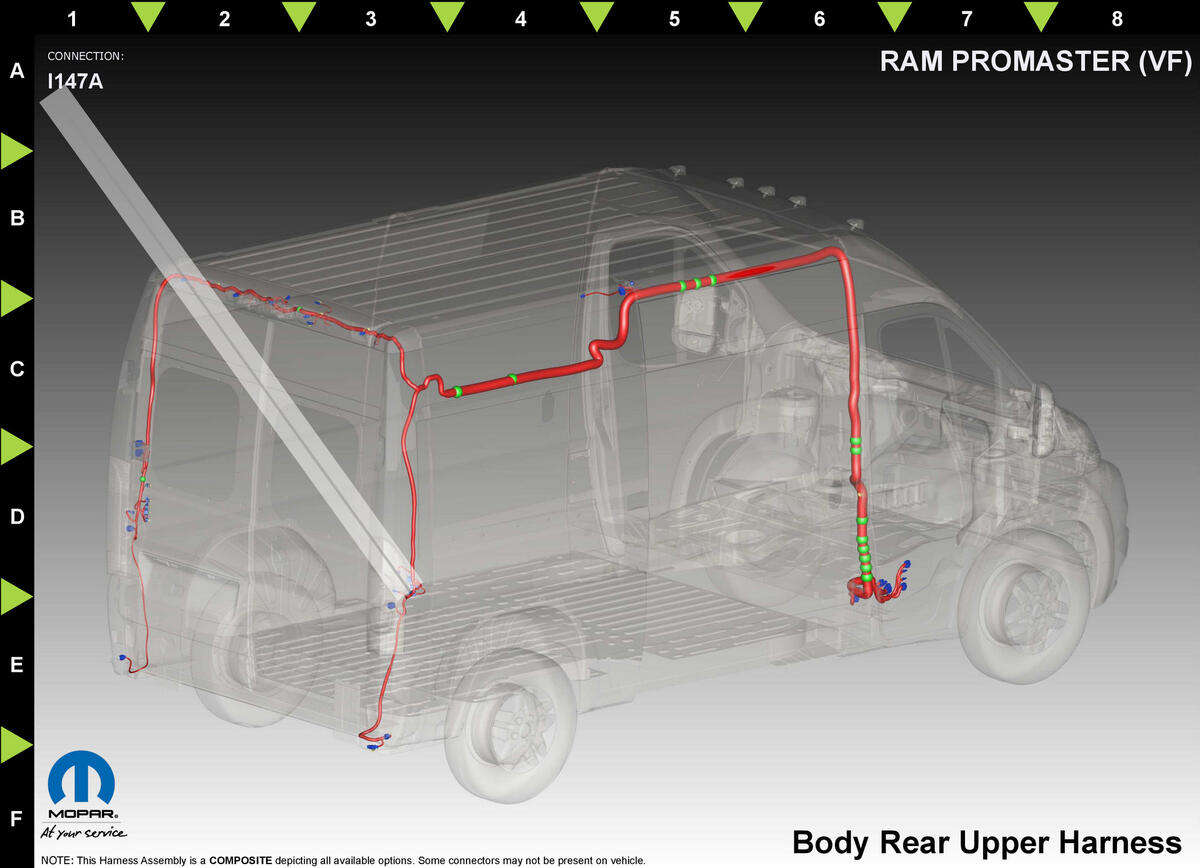

I147A (Standard) Connector End View (I147A)
Harness-Family: Body_Rear_Upper
Color: NATURAL
Gender: MALE
Part Number: 6098-6975
Part Description: Not Available
Connector No: I147A
Option: Standard
Repair Kit Part Number: Not Available
Cavity Count: null
| Pin | Circuit | Wire Color | Gauge/Size | Function | Option | ||
|---|---|---|---|---|---|---|---|
| 3 | X700 | GY/RD | 0.35 | REAR PARK ASSIST SENSOR SUPPLY | EXTENDED WHEEL BASE PARK AND UNPARK ASSIST | ||
| 4 | D710 | WH | 0.35 | PARK ASSIST SIGNAL 7 | EXTENDED WHEEL BASE PARK AND UNPARK ASSIST | ||
| 5 | X750 | BK/VT | 0.35 | REAR PARK ASSIST SENSOR GROUND | EXTENDED WHEEL BASE PARK AND UNPARK ASSIST | ||
| 6 | D732 | GY/RD | 0.35 | PARK ASSIST SENSOR SUPPLY | EXTENDED WHEEL BASE PARK AND UNPARK ASSIST | ||
| 7 | D734 | BK/VT | 0.35 | PARK ASSIST SENSOR GROUND | EXTENDED WHEEL BASE PARK AND UNPARK ASSIST | ||
| 8 | D733 | DB | 0.35 | PARK ASSIST SIGNAL 15 | EXTENDED WHEEL BASE PARK AND UNPARK ASSIST | ||
|
|||||||
