I124B (Digital Rearview Mirror) Connector End View (I124B)

Harness-Family: Body_Left

Color: BLACK

Gender: FEMALE

Part Number: 1/17626/07

Part Description: Not Available

Connector No: I124B

Option: DIGITAL REARVIEW MIRROR

Repair Kit Part Number: Not Available

Cavity Count: null

Fig 1: I124b Connector End View (DIGITAL REARVIEW MIRROR)

Courtesy of CHRYSLER

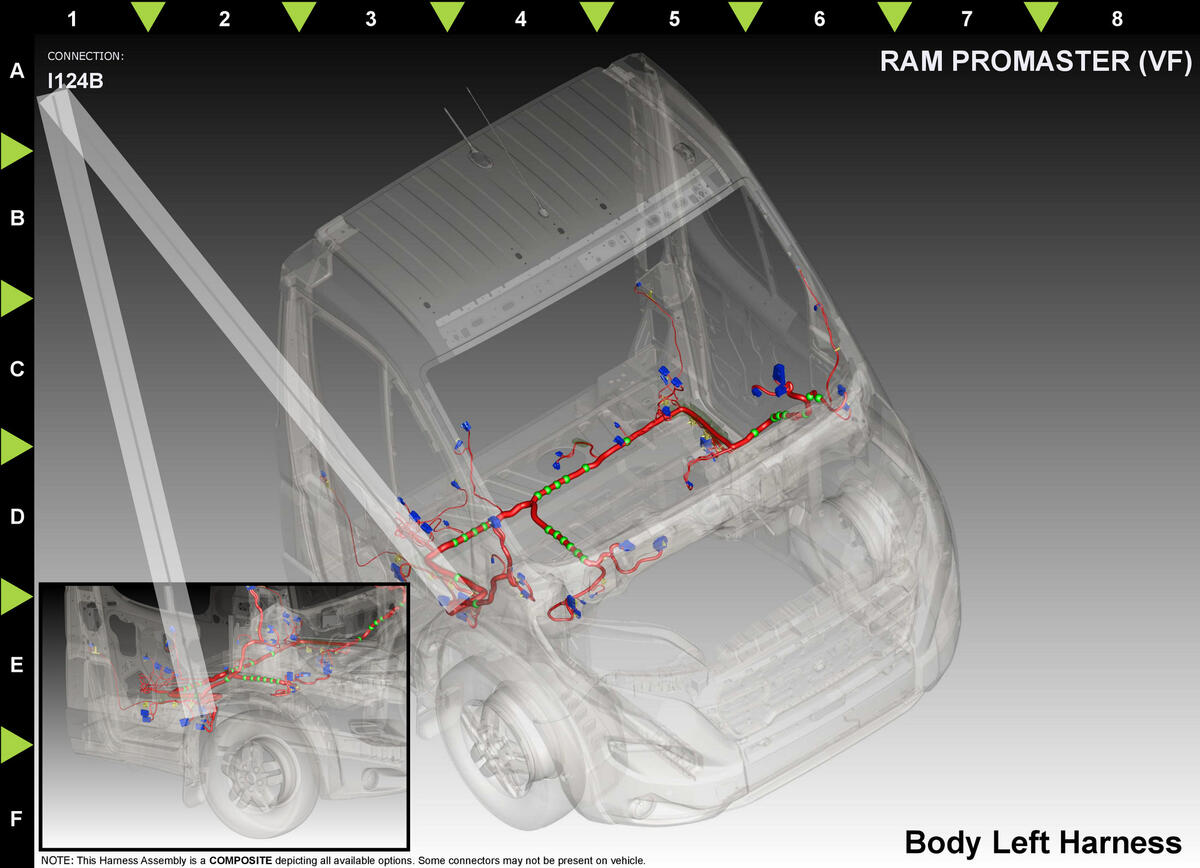

Fig 2: I124b Component Location (DIGITAL REARVIEW MIRROR)

Courtesy of CHRYSLER

Circuit

Wire Color

Gauge/Size

Function

Option

J219

0.81

CAMERA COAX CABLE

CARGO VAN DIGITAL REARVIEW MIRROR

⁽¹⁾	Pins not listed are not used for this connector
