I115A (Standard) Connector End View (I115A)

Harness-Family: Body_Front

Color: GRAY

Gender: MALE

Part Number: 7288-3029-10

Part Description: Not Available

Connector No: I115A

Option: Standard

Repair Kit Part Number: Not Available

Cavity Count: null

Fig 1: I115a Connector End View (Standard)

GCWD1268959

Courtesy of CHRYSLER

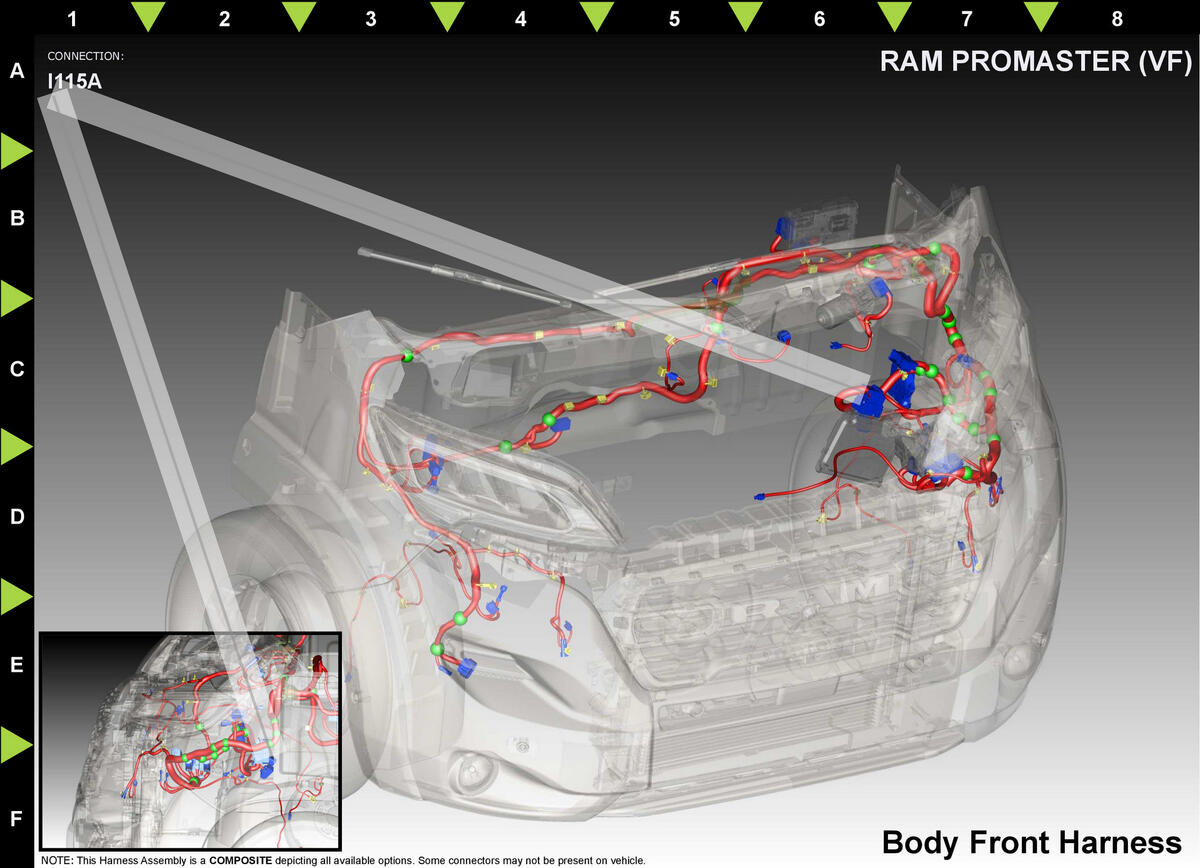

Fig 2: I115a Component Location (Standard)

GCWD1293422

Courtesy of CHRYSLER

Pin

Circuit

Wire Color

Gauge/Size

Function

Option

1

B65

WH

2.5

LEFT EPB ACTUATOR B CONTROL

N/A

2

B63

GN/OG

2.5

LEFT EPB ACTUATOR A CONTROL

N/A

3

B66

DB/RD

2.5

RIGHT EPB ACTUATOR B CONTROL

N/A

4

B64

DB

2.5

RIGHT EPB ACTUATOR A CONTROL

N/A

⁽¹⁾	Pins not listed are not used for this connector
