I009SG (Standard) Connector End View (I009SG)

Harness-Family: Body_Left

Color: BLACK

Gender: FEMALE

Part Number: 1/12633/97

Part Description: Not Available

Connector No: I009SG

Option: Standard

Repair Kit Part Number: Not Available

Cavity Count: null

Fig 1: I009sg Connector End View (Standard)

GCWD1000104

Courtesy of CHRYSLER

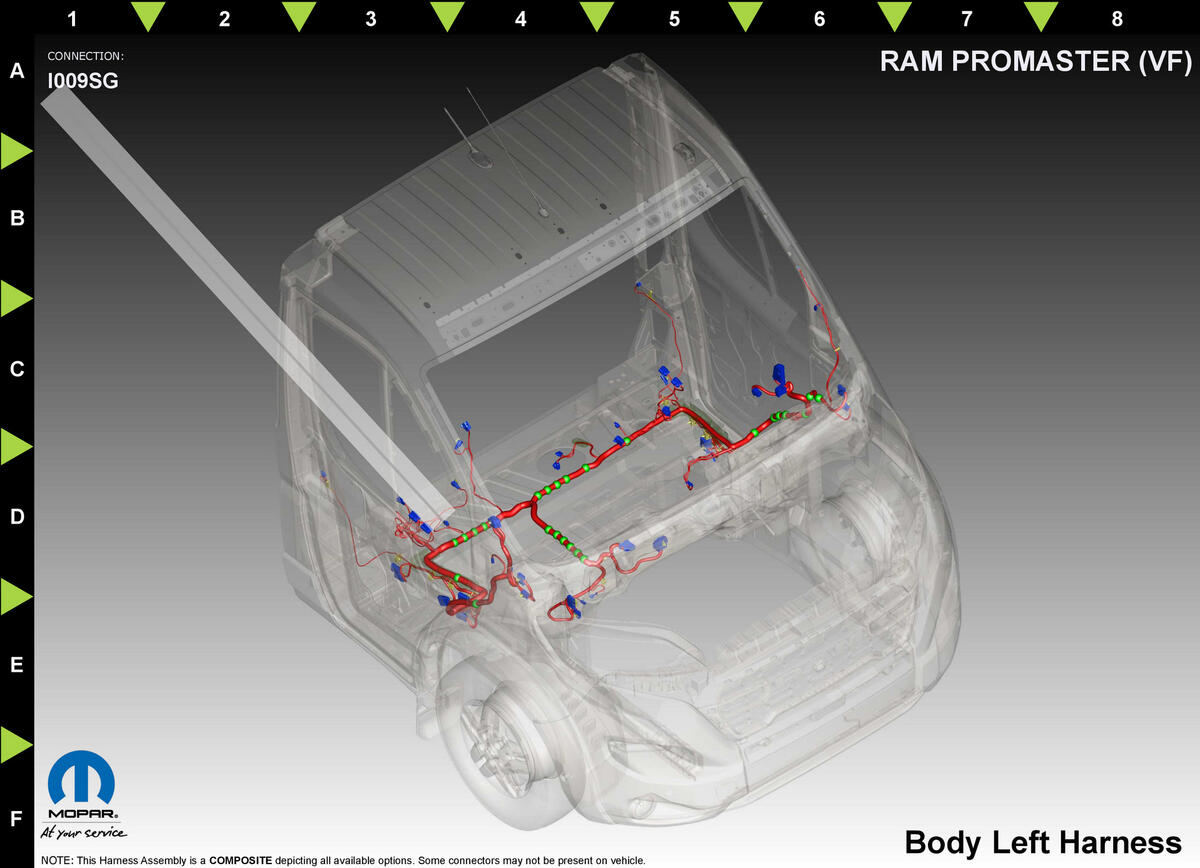

Fig 2: I009sg Component Location (Standard)

GCWD1293571

Courtesy of CHRYSLER

Pin

Circuit

Wire Color

Gauge/Size

Function

Option

1

P168

GN/RD

0.5

PASSENGER SWIVEL SEAT SWITCH SENSE

PASSENGER SWIVEL SEAT

2

Z107

BK

0.5

GROUND

SWIVEL SEATS

⁽¹⁾	Pins not listed are not used for this connector
