I009SB (Standard) Connector End View (I009SB)

Harness-Family: Body_Left

Color: ORANGE

Gender: FEMALE

Part Number: 1/08440/94

Part Description: Not Available

Connector No: I009SB

Option: Standard

Repair Kit Part Number: Not Available

Cavity Count: null

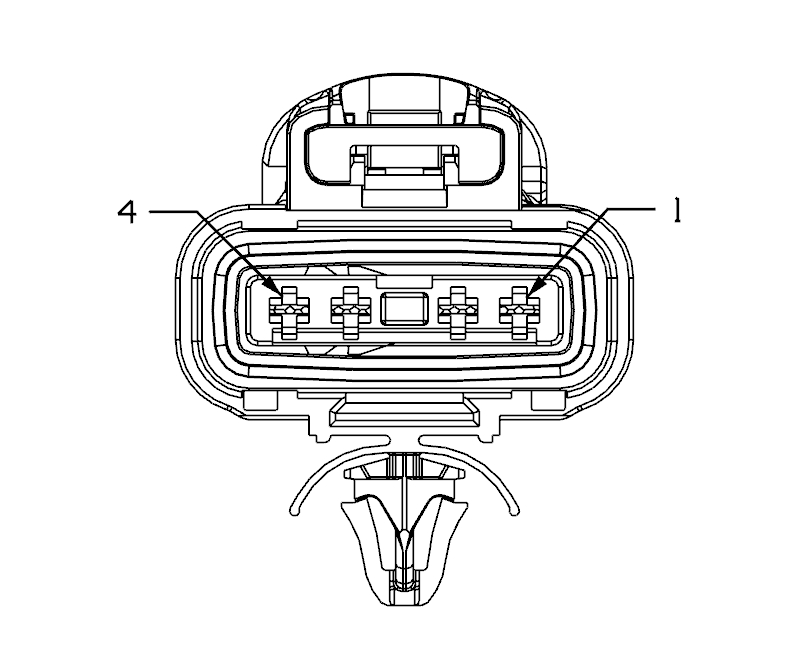

Fig 1: I009sb Connector End View (Standard)

GCWD1000429

Courtesy of CHRYSLER

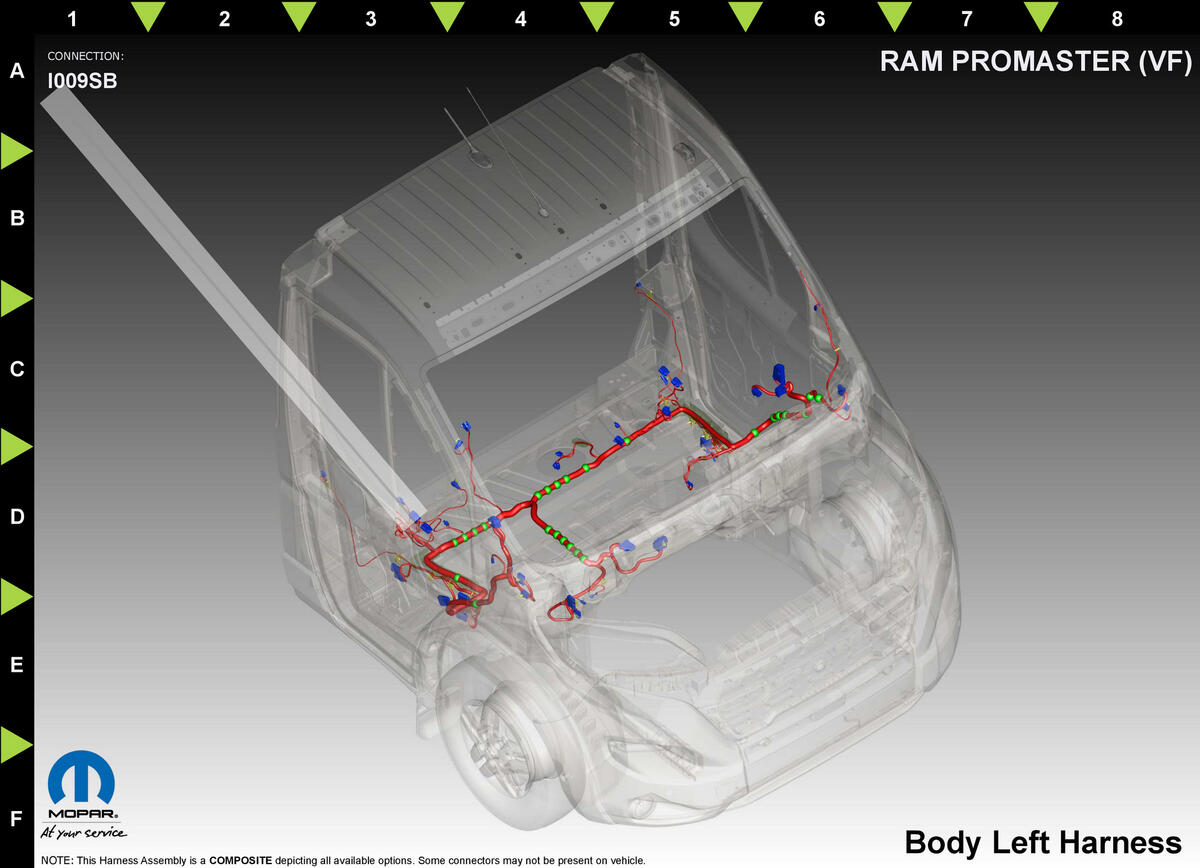

Fig 2: I009sb Component Location (Standard)

GCWD1293577

Courtesy of CHRYSLER

Pin

Circuit

Wire Color

Gauge/Size

Function

Option

1

R6

OG

0.5

RIGHT SEAT THORAX SQUIB 1 LINE 2

N/A

2

R8

OG/BK

0.5

RIGHT SEAT THORAX SQUIB 1 LINE 1

N/A

3

Z107

BK

0.5

GROUND

N/A

⁽¹⁾	Pins not listed are not used for this connector
