I004A (Standard) Connector End View (I004A)

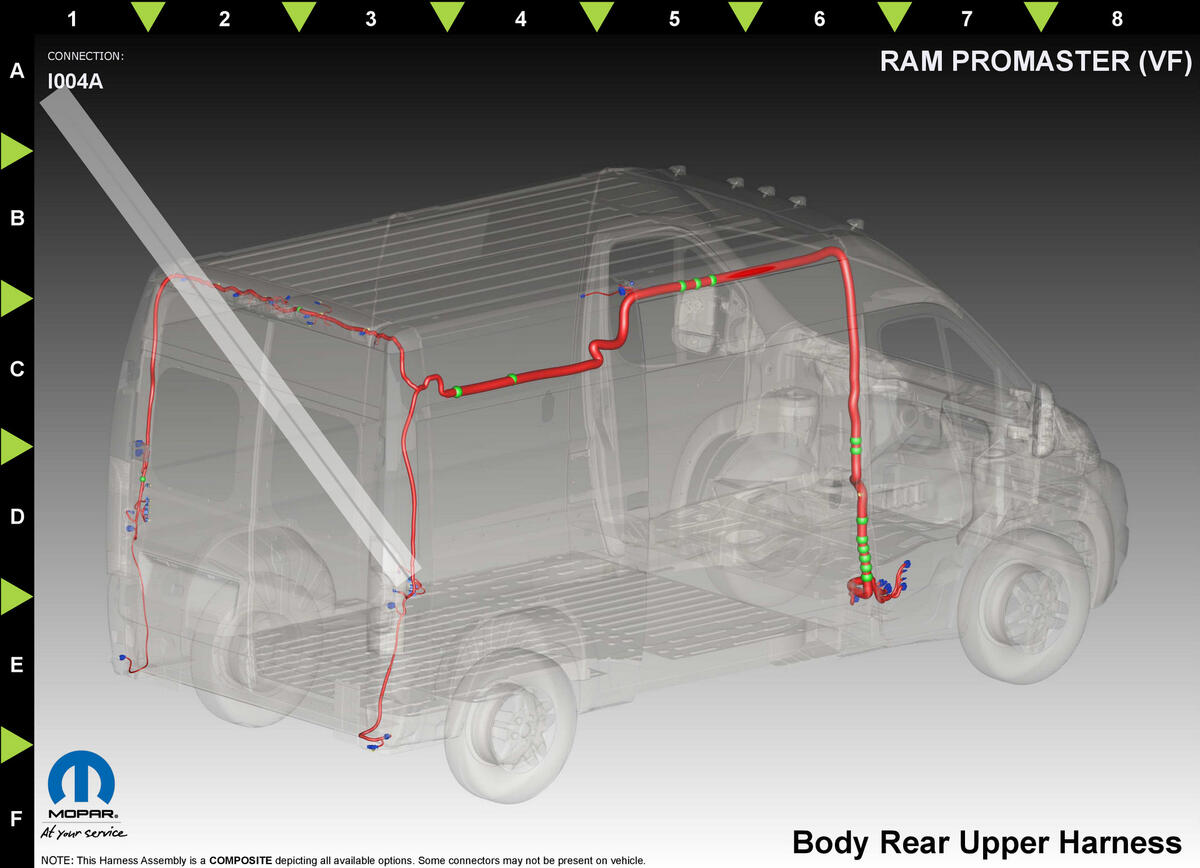

Harness-Family: Body_Rear_Upper
Color: WHITE
Gender: MALE
Part Number: 1/24839/80
Part Description: Not Available
Connector No: I004A
Option: Standard
Repair Kit Part Number: Not Available
Cavity Count: null
| Pin | Circuit | Wire Color | Gauge/Size | Function | Option | ||
|---|---|---|---|---|---|---|---|
| 1 | P30 | VT/GN | 0.35 | REAR DOOR HANDLE SWITCH SENSE | HIGH ROOF EXTENDED WHEEL BASE CARGO VAN | ||
| 2 | Z918 | BK/VT | 0.5 | GROUND | HIGH ROOF EXTENDED WHEEL BASE | ||
| 3 | G78 | WH/DB | 0.35 | DECKLID/LIFTGATE AJAR SWITCH SENSE | HIGH ROOF EXTENDED WHEEL BASE | ||
| 4 | P292 | OG/GN | 1.5 | DOORS UNLOCK RELAY OUTPUT | HIGH ROOF EXTENDED WHEEL BASE | ||
| 5 | P34 | RD/BK | 1.5 | REAR SLIDING DOORS LOCK DRIVER | HIGH ROOF EXTENDED WHEEL BASE | ||
| 6 | Z903 | GN/BN | 0.35 | GROUND | HIGH ROOF EXTENDED WHEEL BASE CARGO VAN | ||
|
|||||||
