I003B (Standard) Connector End View (I003B)

Harness-Family: Body_Front

Color: GREEN

Gender: MALE

Part Number: 1/11931/93

Part Description: Not Available

Connector No: I003B

Option: Standard

Repair Kit Part Number: Not Available

Cavity Count: null

Fig 1: I003b Connector End View (Standard)

GCWD1085885

Courtesy of CHRYSLER

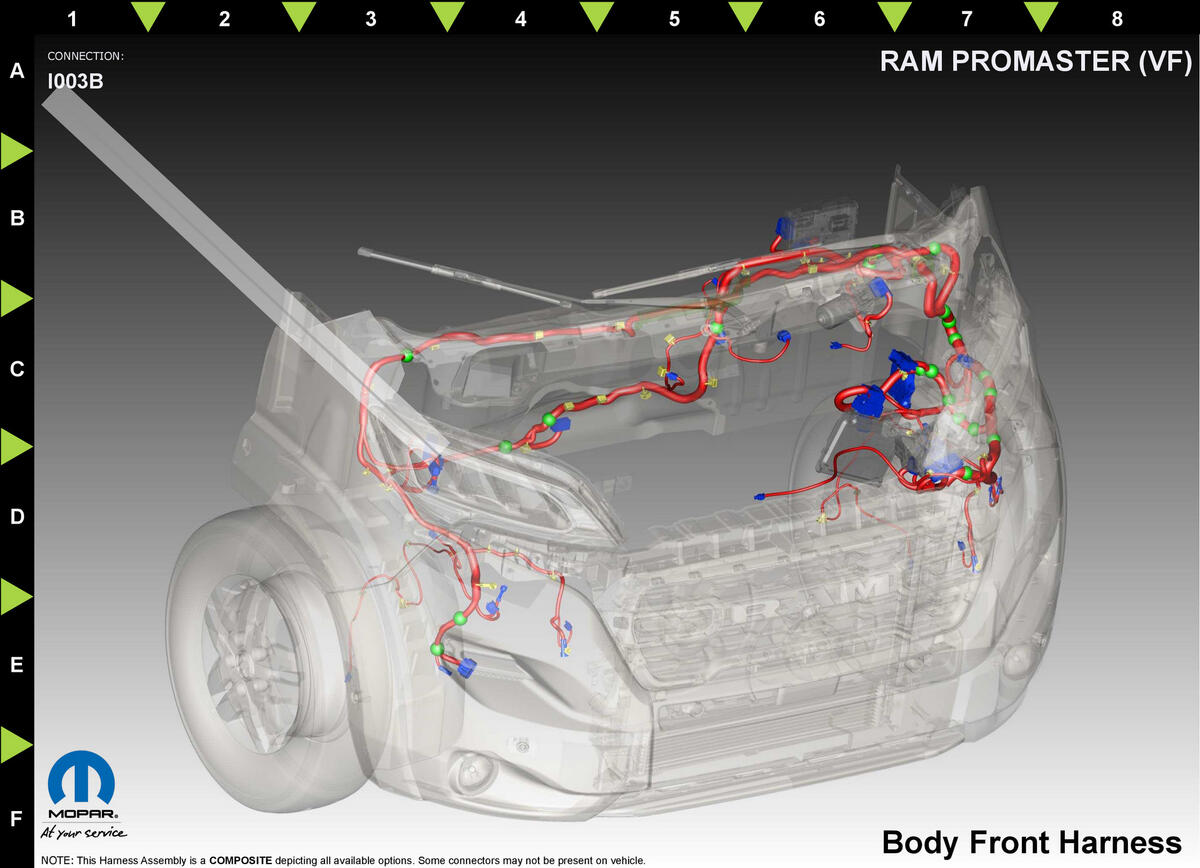

Fig 2: I003b Component Location (Standard)

GCWD1293398

Courtesy of CHRYSLER

Pin

Circuit

Wire Color

Gauge/Size

Function

Option

1

Z905

GN/OG

0.35

GROUND

N/A

3

B67

VT/OG

0.35

EPB SWITCH POSITION 2 SIGNAL

N/A

4

B69

VT/DB

0.35

EPB SWITCH POSITION 4 SIGNAL

N/A

5

B68

VT/RD

0.35

EPB SWITCH POSITION 3 SIGNAL

N/A

7

B60

VT/GN

0.35

EPB SWITCH POSITION 1 SIGNAL

N/A

⁽¹⁾	Pins not listed are not used for this connector
