I003A (Standard) Connector End View (I003A)

Harness-Family: Body_Front

Color: BLACK

Gender: FEMALE

Part Number: 1/14241/07

Part Description: Not Available

Connector No: I003A

Option: Standard

Repair Kit Part Number: Not Available

Cavity Count: null

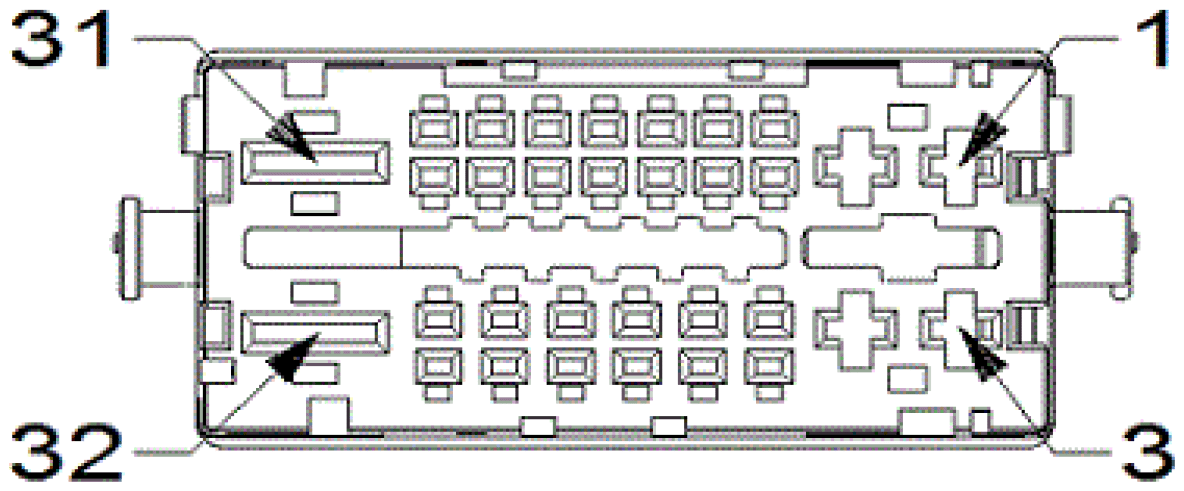

Fig 1: I003a Connector End View (Standard)

GCWD1293938

Courtesy of CHRYSLER

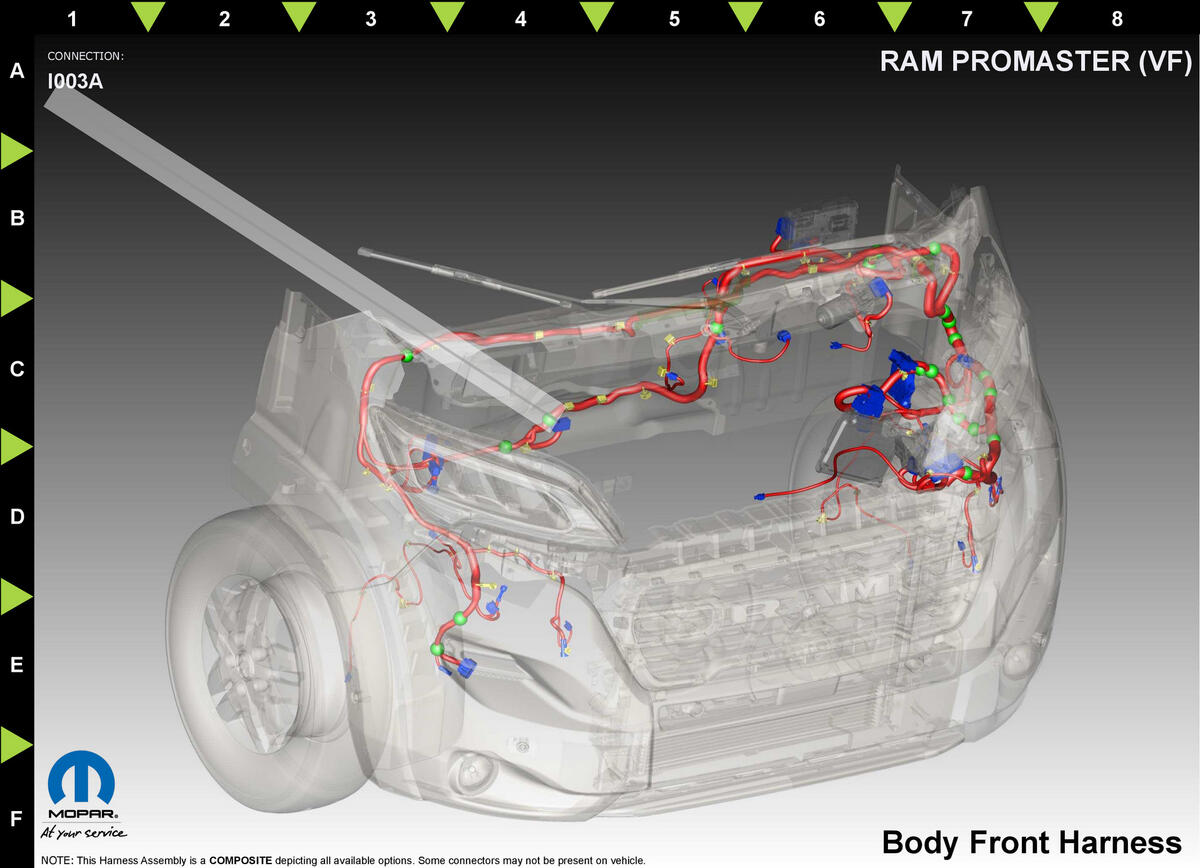

Fig 2: I003a Component Location (Standard)

GCWD1293399

Courtesy of CHRYSLER

Pin

Circuit

Wire Color

Gauge/Size

Function

Option

1

C7

RD

4

BLOWER MOTOR SUPPLY

N/A

2

A807

RD/GN

2.5

FUSED B(+)

VSIM

3

A205

GY/RD

1.5

FUSED B(+)

N/A

5

D702

GY/GN

0.35

PARK ASSIST SIGNAL 5

FRONT AND REAR PARK ASSIST

6

D709

BN/BK

0.35

PARK ASSIST SIGNAL 2

FRONT AND REAR PARK ASSIST

7

G63

WH/OG

0.35

ESC MODE SIGNAL

N/A

9

F102

DB

0.5

IGNITION RUN RELAY CONTROL

N/A

10

R81

BN/BK

0.35

LEFT FRONT IMPACT SENSOR GROUND

N/A

11

R79

BN

0.35

LEFT FRONT IMPACT SENSOR SIGNAL

N/A

12

R82

GY/BK

0.35

RIGHT FRONT IMPACT SENSOR GROUND

N/A

13

R80

GY

0.35

RIGHT FRONT IMPACT SENSOR SIGNAL

N/A

14

A927

RD/BN

0.75

FUSED B(+)

9 SPEED ATX

15

F307

GN/RD

0.5

FUSED IGNITION RUN/ACCESSORY CONTROL OUTPUT

9 SPEED ATX

16

A283

RD/YE

0.75

FUSED B(+)

N/A

17

L779

YE/RD

0.35

PARK LAMP RELAY CONTROL

N/A

18

L779

YE/DB

0.35

PARK LAMP RELAY CONTROL

N/A

19

X702

OG/WH

0.35

FRONT PARK ASSIST SENSOR SUPPLY

FRONT AND REAR PARK ASSIST

20

X751

BK/VT

0.35

FRONT PARK ASSIST SENSOR GROUND

FRONT AND REAR PARK ASSIST

21

D708

WH/DB

0.35

PARK ASSIST SIGNAL 4

FRONT AND REAR PARK ASSIST

22

D443

BN

0.35

CAN C (-)

N/A

23

D442

GN

0.35

CAN C (+)

N/A

24

D357

GN/WH

0.35

CAN CH (+)

N/A

25

D358

BN/WH

0.35

CAN CH (-)

N/A

26

D705

WH/GN

0.35

PARK ASSIST SIGNAL 3

FRONT AND REAR PARK ASSIST

27

X4

BN/GN

0.35

HORN RELAY CONTROL

N/A

28

D706

WH

0.35

PARK ASSIST SIGNAL 1

PARK AND UNPARK ASSIST

29

D707

WH/BN

0.35

PARK ASSIST SIGNAL 6

PARK AND UNPARK ASSIST

⁽¹⁾	Pins not listed are not used for this connector
