I001B (Standard) Connector End View (I001B)

Harness-Family: Body_Left

Color: NATURAL

Gender: MALE

Part Number: 6098-6971

Part Description: Not Available

Connector No: I001B

Option: Standard

Repair Kit Part Number: Not Available

Cavity Count: null

Fig 1: I001b Connector End View (Standard)

GCWD1233554

Courtesy of CHRYSLER

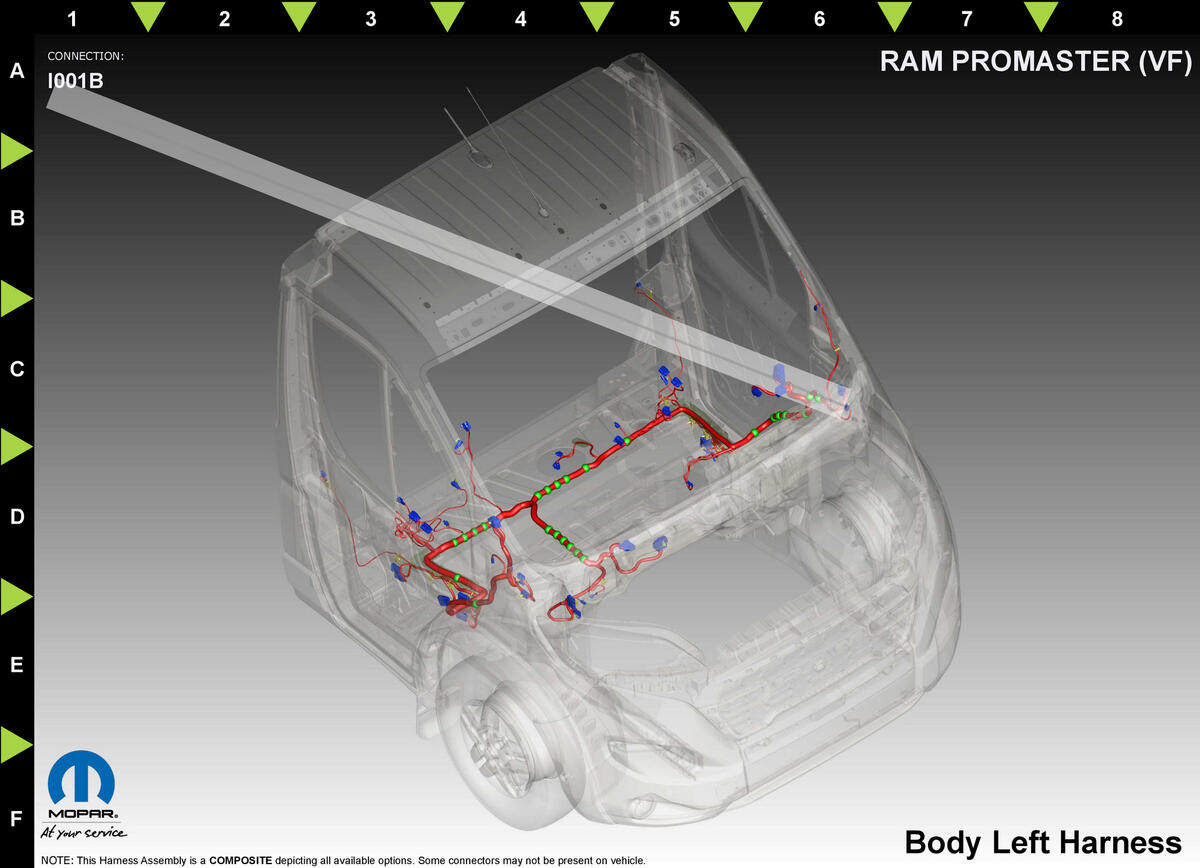

Fig 2: I001b Component Location (Standard)

GCWD1294011

Courtesy of CHRYSLER

Pin

Circuit

Wire Color

Gauge/Size

Function

Option

1

Q11

RD/BK

1.5

DRIVER WINDOW DRIVER (UP)

N/A

2

Z930

BK

1

GROUND

N/A

3

Q21

BK/RD

1.5

DRIVER WINDOW DRIVER (DOWN)

N/A

⁽¹⁾	Pins not listed are not used for this connector
