G041XA (Standard) Connector End View (G041XA)

Harness-Family: Chassis_Rear

Color: NA

Gender: FEMALE

Part Number: 1/10203/54

Part Description: Not Available

Connector No: G041XA

Option: Standard

Repair Kit Part Number: Not Available

Cavity Count: null

Fig 1: G041xa Connector End View (Standard)

Courtesy of CHRYSLER

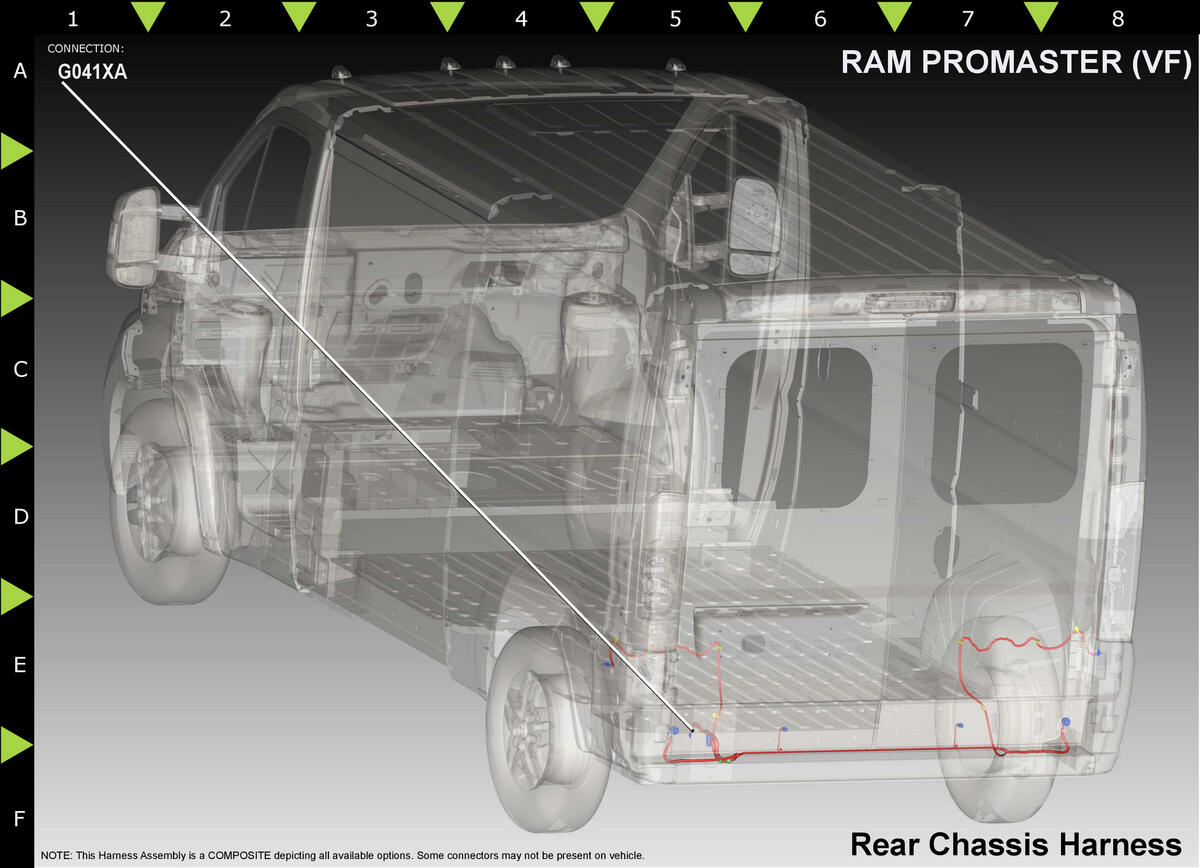

Fig 2: G041xa Component Location (Standard)

Courtesy of CHRYSLER

Circuit

Wire Color

Gauge/Size

Function

Option

Z367

0.5

GROUND

CHASSIS CAB

⁽¹⁾	Pins not listed are not used for this connector
