G041L5G (Standard) Connector End View (G041L5G)

Harness-Family: Body_Rear_Upper

Color: NA

Gender: FEMALE

Part Number: 1/10203/54

Part Description: Not Available

Connector No: G041L5G

Option: Standard

Repair Kit Part Number: Not Available

Cavity Count: null

Fig 1: G041l5g Connector End View (Standard)

Courtesy of CHRYSLER

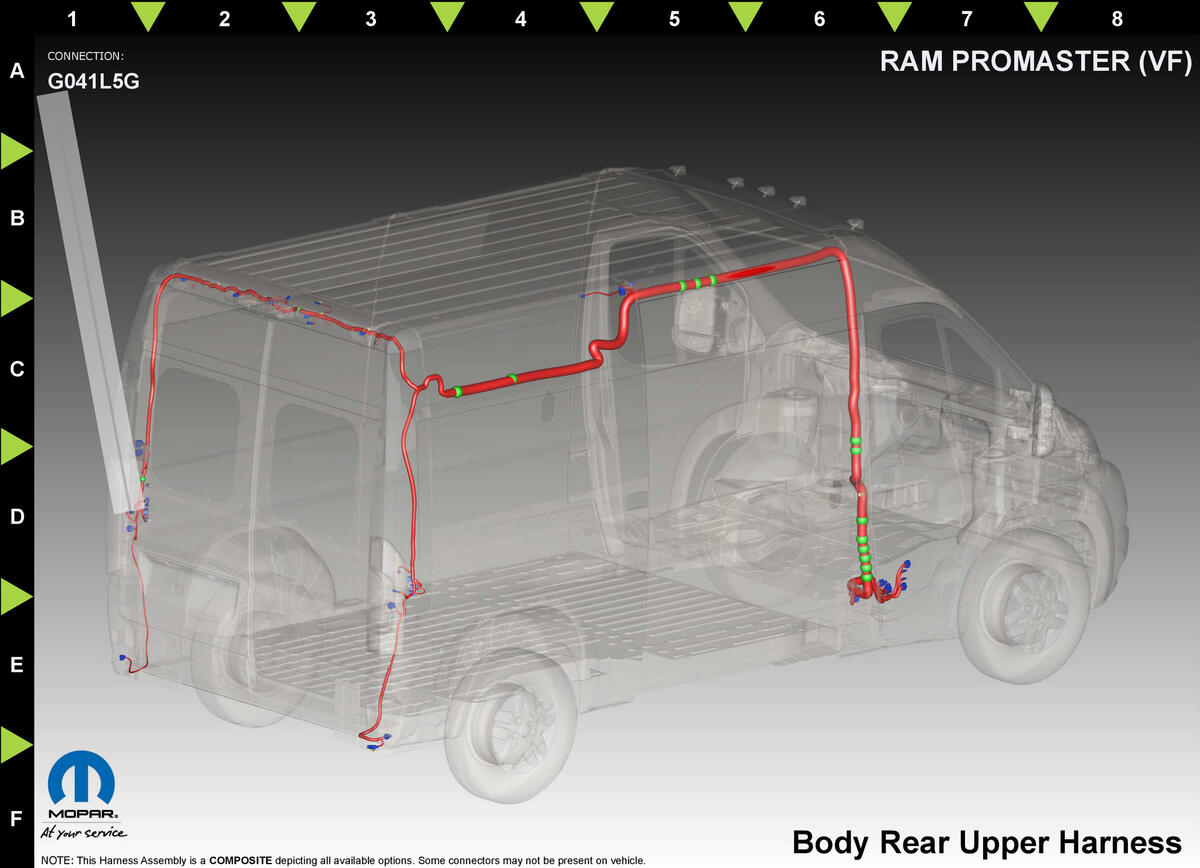

Fig 2: G041l5g Component Location (Standard)

Courtesy of CHRYSLER

Circuit

Wire Color

Gauge/Size

Function

Option

Z367

0.5

GROUND

SUPER HIGH ROOF EXTENDED WHEEL BASE BLIND SPOT AND CROSS PATH

⁽¹⁾	Pins not listed are not used for this connector
