G037EA (Standard) Connector End View (G037EA)

Harness-Family: Engine

Color: NA

Gender: FEMALE

Part Number: 1/17762/54

Part Description: Not Available

Connector No: G037EA

Option: Standard

Repair Kit Part Number: Not Available

Cavity Count: null

Fig 1: G037ea Connector End View (Standard)

Courtesy of CHRYSLER

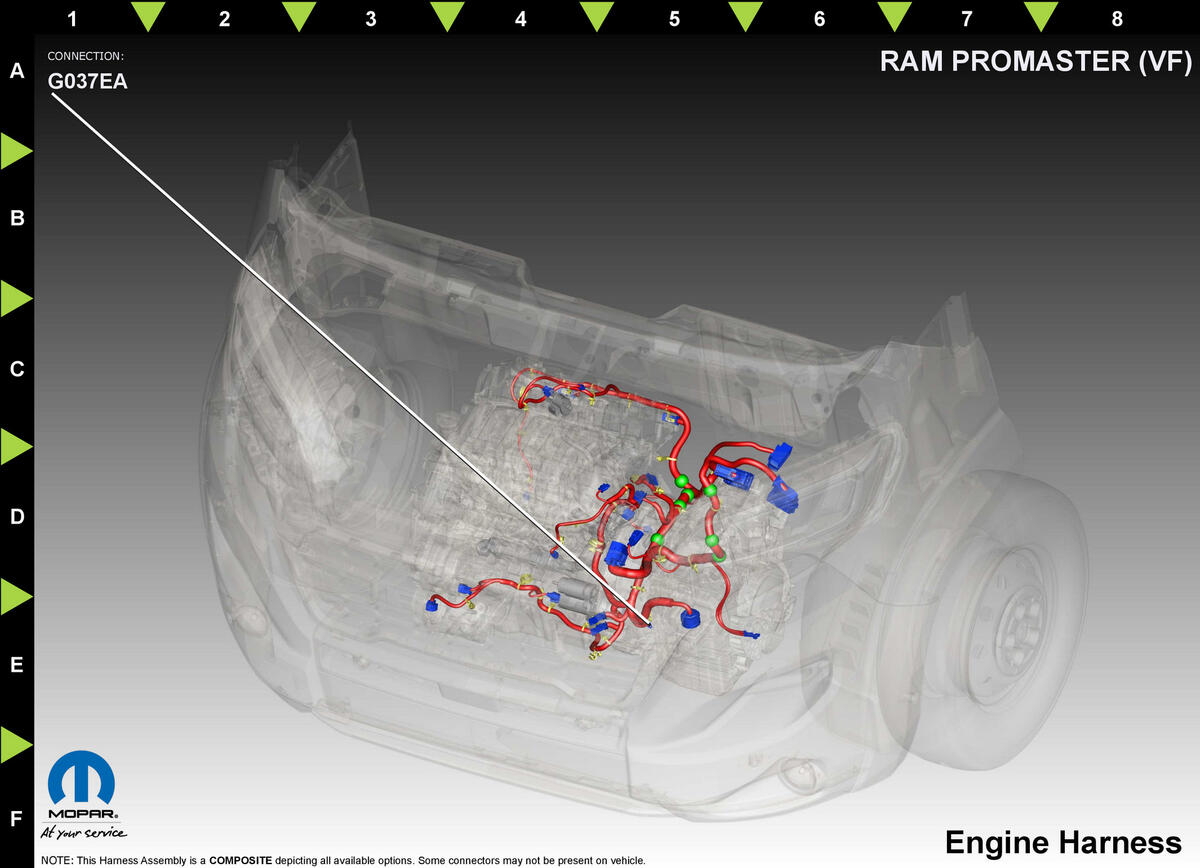

Fig 2: G037ea Component Location (Standard)

Courtesy of CHRYSLER

Circuit

Wire Color

Gauge/Size

Function

Option

Z937

1.5

GROUND

9 SPEED ATX

⁽¹⁾	Pins not listed are not used for this connector
