G029PA (Standard) Connector End View (G029PA)

Harness-Family: IP

Color: NA

Gender: FEMALE

Part Number: 1/10203/54

Part Description: Not Available

Connector No: G029PA

Option: Standard

Repair Kit Part Number: Not Available

Cavity Count: null

Fig 1: G029pa Connector End View (Standard)

Courtesy of CHRYSLER

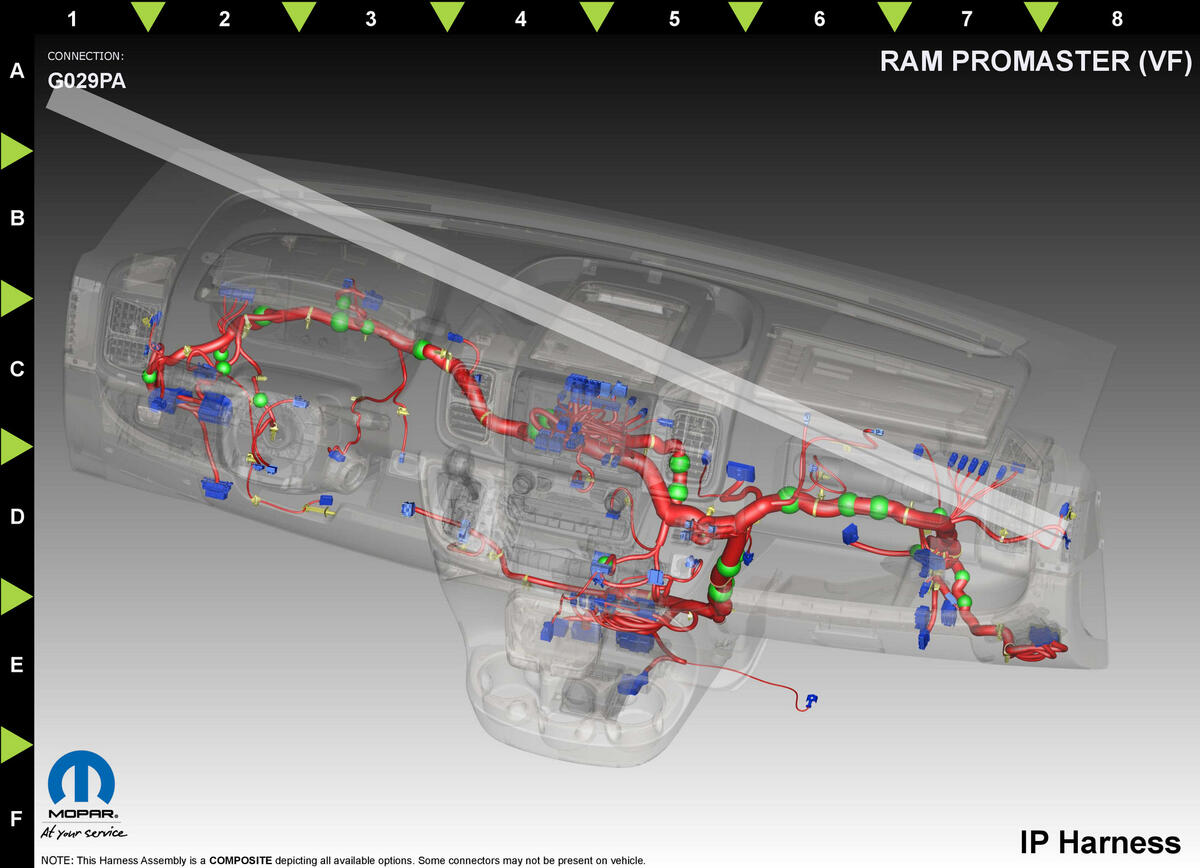

Fig 2: G029pa Component Location (Standard)

Courtesy of CHRYSLER

Circuit

Wire Color

Gauge/Size

Function

Option

Z930

GROUND

N/A

Z931

0.35

GROUND

A/C

⁽¹⁾	Pins not listed are not used for this connector
