G026LA (Standard) Connector End View (G026LA)

Harness-Family: Body_Left

Color: NA

Gender: FEMALE

Part Number: 1/10203/54

Part Description: Not Available

Connector No: G026LA

Option: Standard

Repair Kit Part Number: Not Available

Cavity Count: null

Fig 1: G026la Connector End View (Standard)

GCWD1013721

Courtesy of CHRYSLER

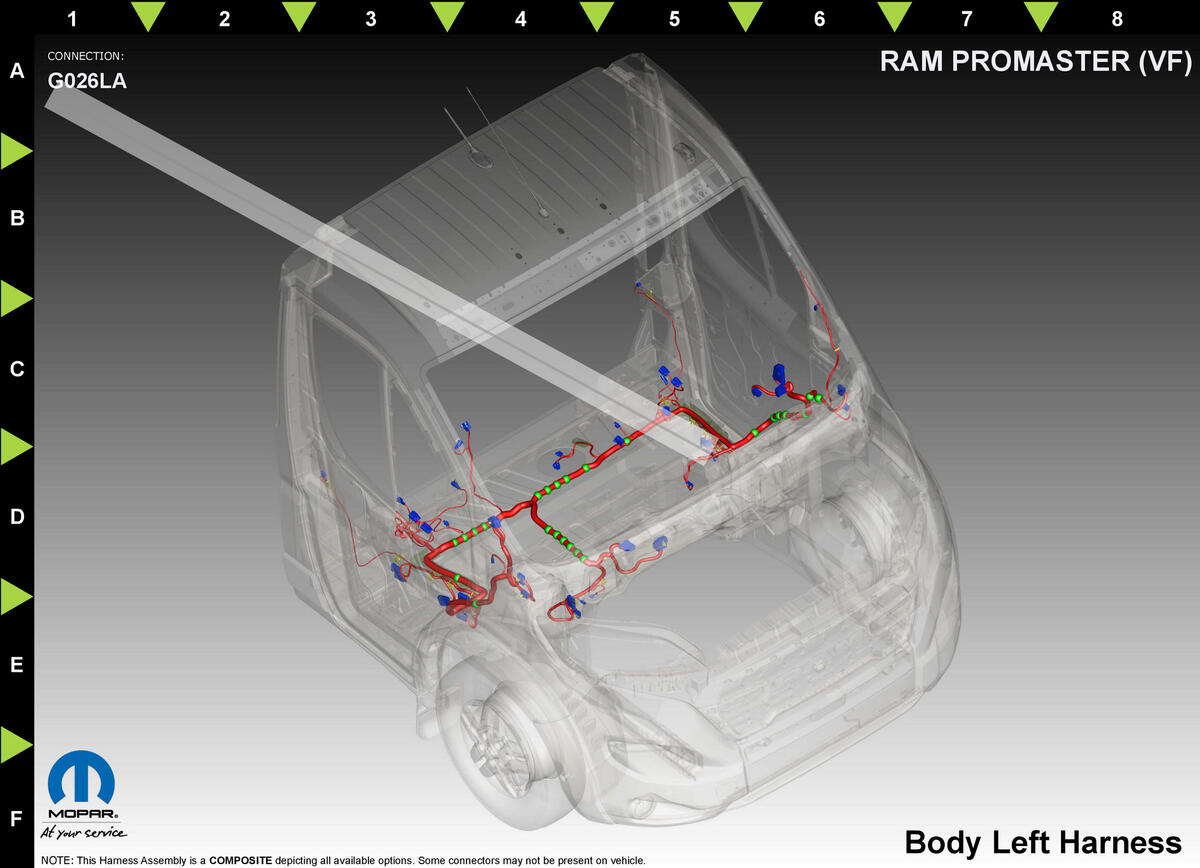

Fig 2: G026la Component Location (Standard)

GCWD1293596

Courtesy of CHRYSLER

Pin

Circuit

Wire Color

Gauge/Size

Function

Option

1

Z903

BK

0.5

GROUND

N/A

1

Z930

BK

1

GROUND

N/A

1

Z918

BK

0.5

GROUND

CARGO VAN

1

Z909

BK

0.35

GROUND

FORWARD COLLISION

⁽¹⁾	Pins not listed are not used for this connector
