G015A (Standard) Connector End View (G015A)

Harness-Family: Chassis

Color: NA

Gender: FEMALE

Part Number: 1/10203/54

Part Description: Not Available

Connector No: G015A

Option: Standard

Repair Kit Part Number: Not Available

Cavity Count: null

Fig 1: G015a Connector End View (Standard)

Courtesy of CHRYSLER

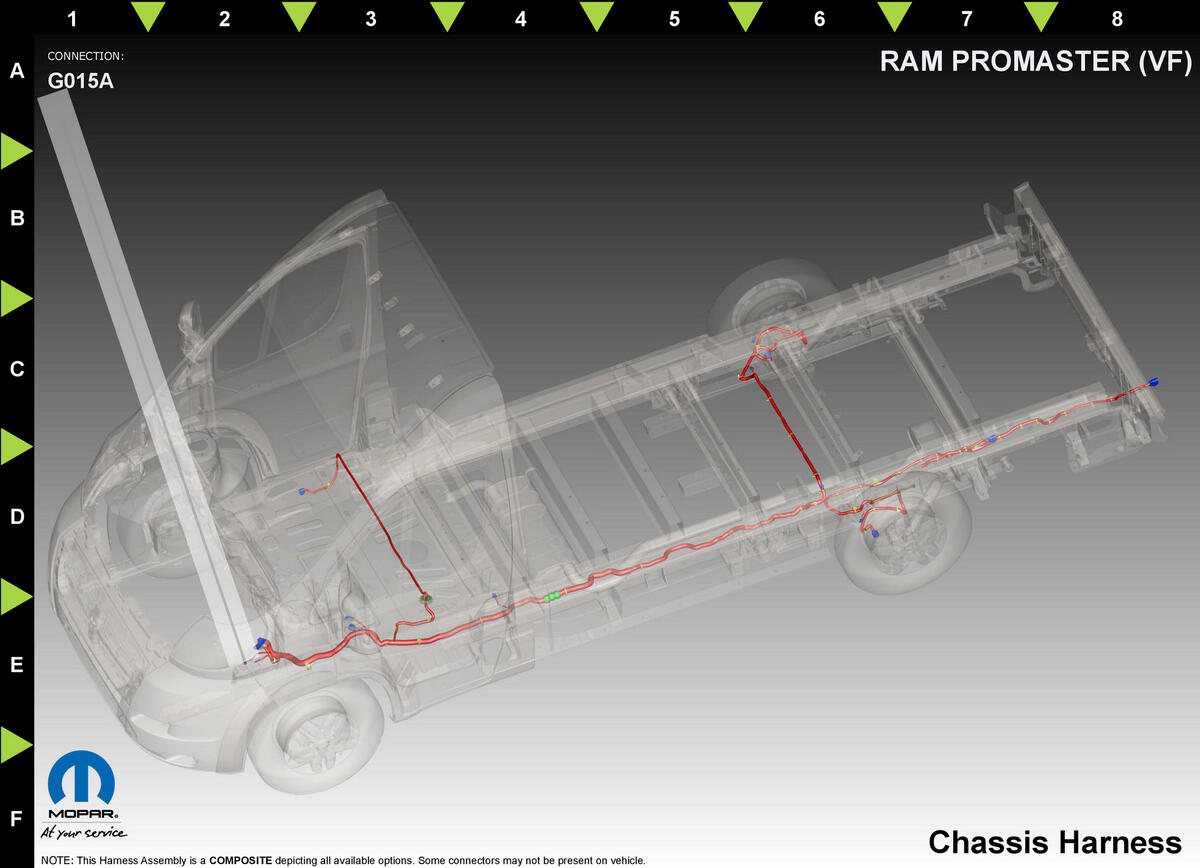

Fig 2: G015a Component Location (Standard)

Courtesy of CHRYSLER

Circuit

Wire Color

Gauge/Size

Function

Option

Z925

GROUND

N/A

⁽¹⁾	Pins not listed are not used for this connector
