G009RA (Standard) Connector End View (G009RA)

Harness-Family: Radiator

Color: NA

Gender: FEMALE

Part Number: 1/10203/54

Part Description: Not Available

Connector No: G009RA

Option: Standard

Repair Kit Part Number: Not Available

Cavity Count: null

Fig 1: G009ra Connector End View (Standard)

Courtesy of CHRYSLER

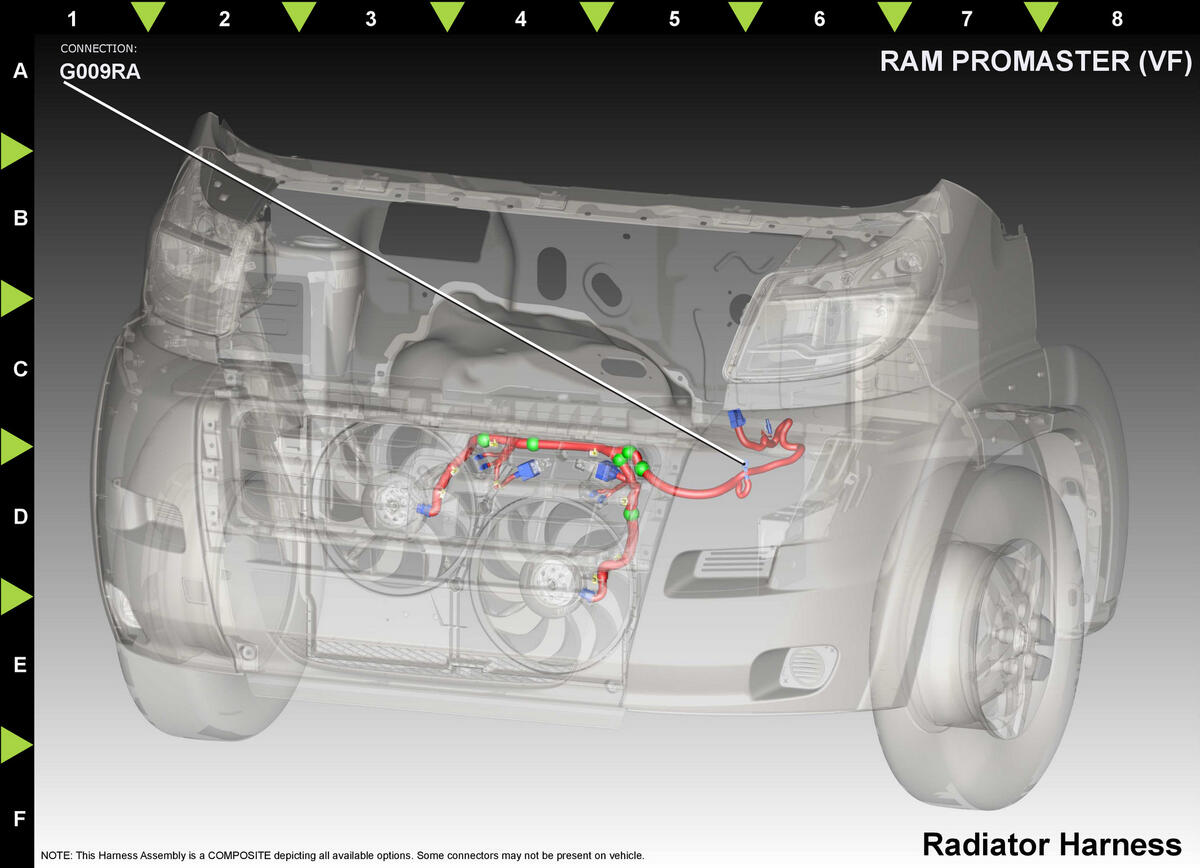

Fig 2: G009ra Component Location (Standard)

Courtesy of CHRYSLER

Circuit

Wire Color

Gauge/Size

Function

Option

Z823

GROUND

AIR CONDITIONING

⁽¹⁾	Pins not listed are not used for this connector
