G008EA (Standard) Connector End View (G008EA)

Harness-Family: Engine

Color: NA

Gender: FEMALE

Part Number: 1/10203/54

Part Description: Not Available

Connector No: G008EA

Option: Standard

Repair Kit Part Number: Not Available

Cavity Count: null

Fig 1: G008ea Connector End View (Standard)

Courtesy of CHRYSLER

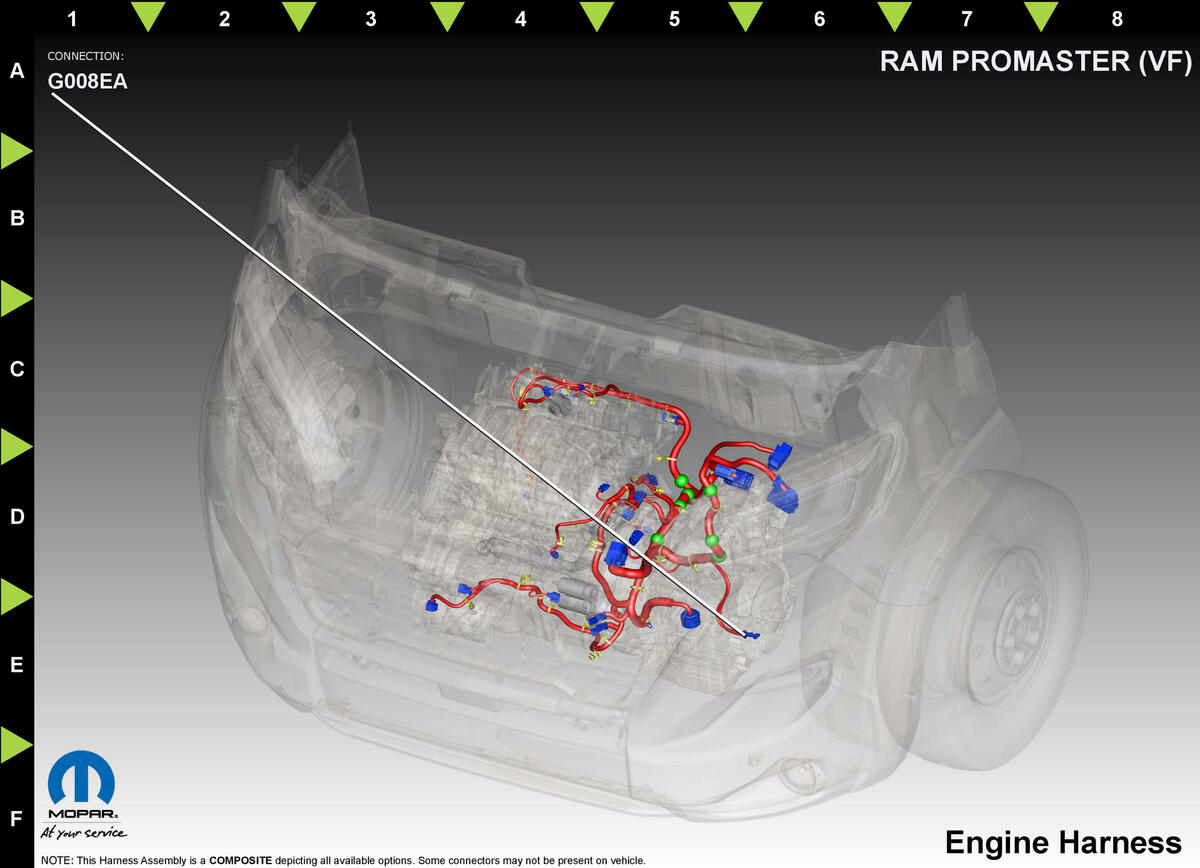

Fig 2: G008ea Component Location (Standard)

Courtesy of CHRYSLER

Circuit

Wire Color

Gauge/Size

Function

Option

Z916

BK/VT

0.75

GROUND

N/A

⁽¹⁾	Pins not listed are not used for this connector
