Coil-Ignition 5 (Standard) Connector End View (D5208A)

Harness-Family: Injector

Color: BLACK

Gender: FEMALE

Part Number: 805-121-521

Part Description: Not Available

Connector No: D5208A

Option: Standard

Repair Kit Part Number: Not Available

Cavity Count: null

Fig 1: Coil-Ignition 5 Connector End View (Standard)

Courtesy of CHRYSLER

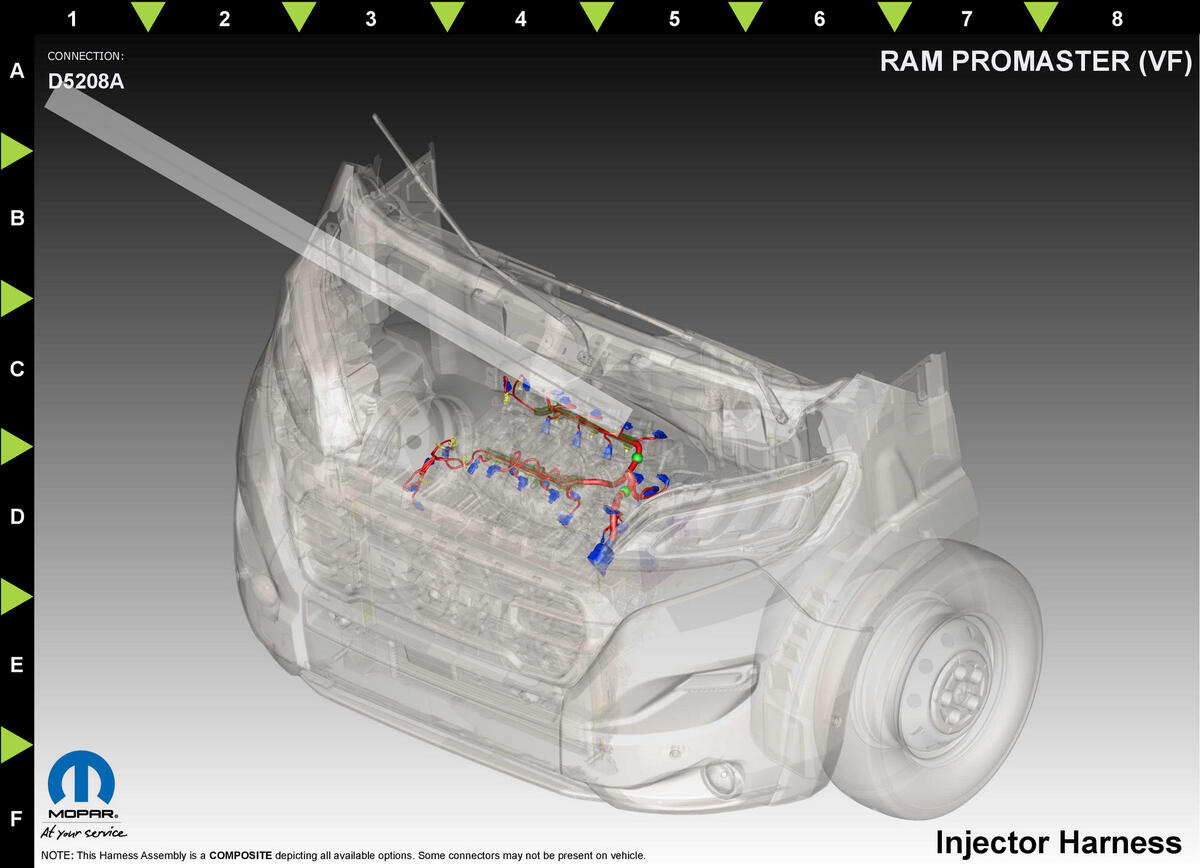

Fig 2: Coil-Ignition 5 Component Location (Standard)

Courtesy of CHRYSLER

Circuit

Wire Color

Gauge/Size

Function

Option

K16

DB/YE

COIL CONTROL 5

N/A

F343

BN/WH

FUSED ASD RELAY OUTPUT

N/A

Z927

0.35

GROUND

N/A

⁽¹⁾	Pins not listed are not used for this connector
