Antenna-Wireless Connectivity/WIFI (Standard) Connector End View (D2964A)

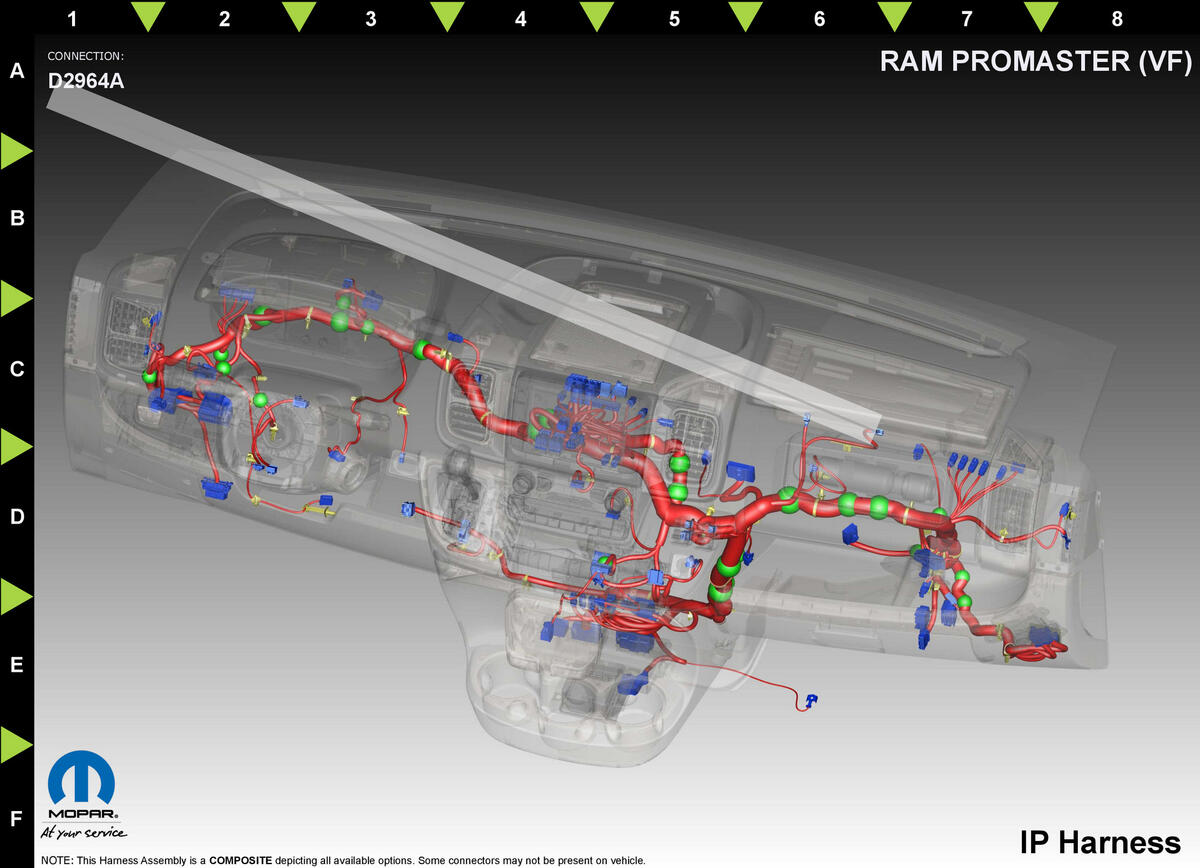

Harness-Family: IP
Color: ORANGE
Gender: FEMALE
Part Number: 1/17435/94
Part Description: Not Available
Connector No: D2964A
Option: Standard
Repair Kit Part Number: Not Available
Cavity Count: null
| Pin | Circuit | Wire Color | Gauge/Size | Function | Option | ||
|---|---|---|---|---|---|---|---|
| 1 | J200 | BK | 1.1 | COAX WIRELESS CONNECTIVITY SIG | 10" RADIO DISPLAY | ||
| 1 | D933 | BK | 1.1 | ANTENNA SIGNAL | 10" RADIO DISPLAY | ||
|
|||||||
