Antenna-Passive Entry 3 (Except Ambient Led) Connector End View (D3103A)

Harness-Family: Passive_Entry_Jumper

Color: BLACK

Gender: FEMALE

Part Number: 1-1438608-5

Part Description: Not Available

Connector No: D3103A

Option: EXCEPT AMBIENT LED

Repair Kit Part Number: Not Available

Cavity Count: null

Fig 1: Antenna-Passive Entry 3 Connector End View (EXCEPT AMBIENT LED)

Courtesy of CHRYSLER

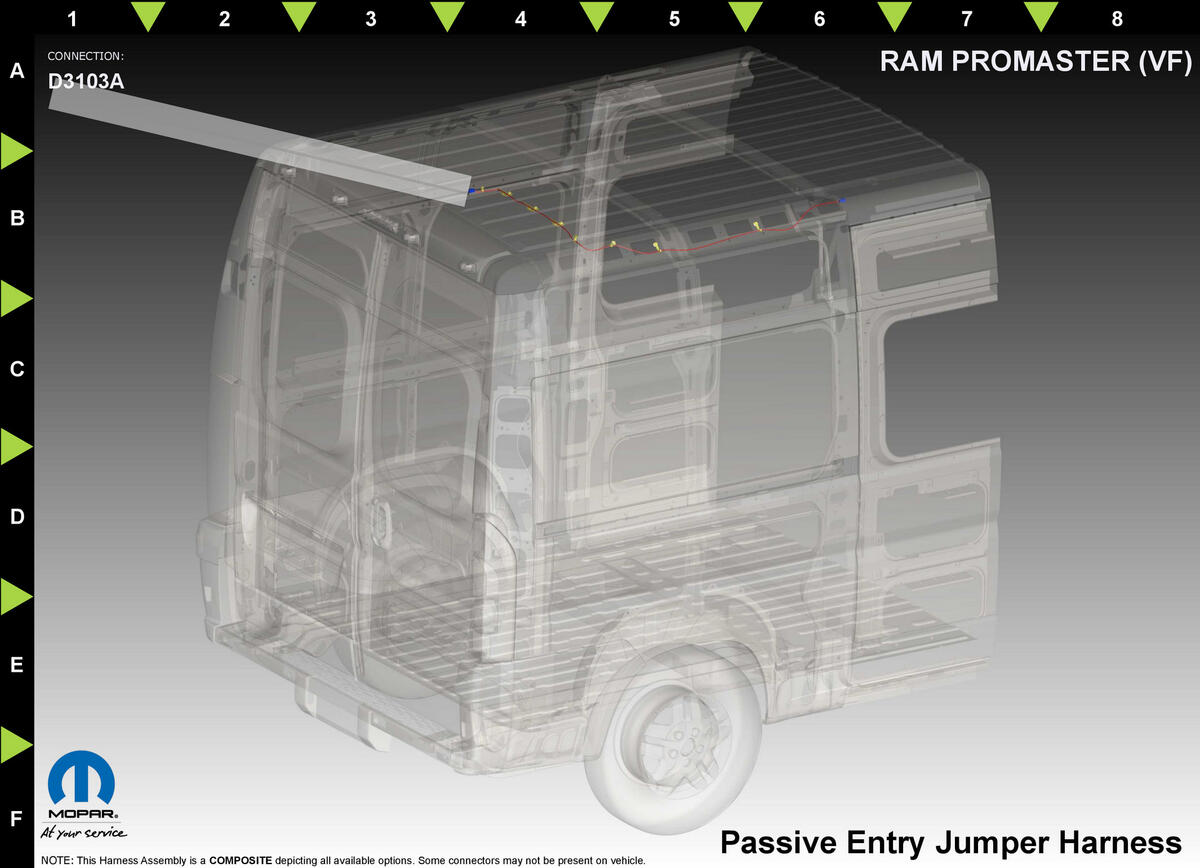

Fig 2: Antenna-Passive Entry 3 Component Location (EXCEPT AMBIENT LED)

Courtesy of CHRYSLER

Circuit

Wire Color

Gauge/Size

Function

Option

D924

OG/BK

0.75

PASSIVE ENTRY ANTENNA 3 SIGNAL

CARGO VAN

D925

0.75

PASSIVE ENTRY ANTENNA 3 RETURN

CARGO VAN

⁽¹⁾	Pins not listed are not used for this connector
