Wiring-Trailer Tow 7-Way (Standard) Connector End View (D6644A)

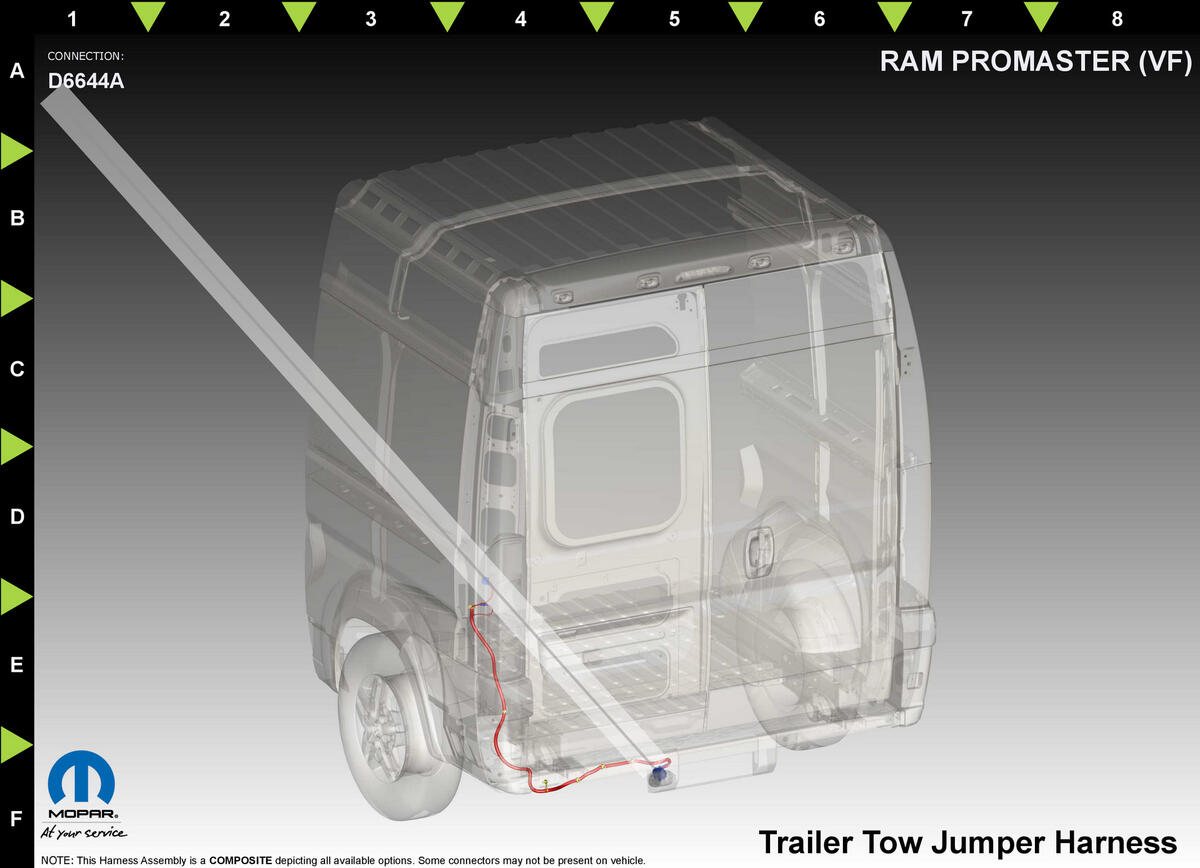

Harness-Family: Trailer_Tow_Jumper
Color: BLACK
Gender: FEMALE
Part Number: 13626146_13965231
Part Description: Not Available
Connector No: D6644A
Option: Standard
Repair Kit Part Number: Not Available
Cavity Count: null
| Pin | Circuit | Wire Color | Gauge/Size | Function | Option | ||
|---|---|---|---|---|---|---|---|
| A | W751 | DB/RD | 0.75 | TRAILER TOW BACKUP LAMP FEED | AHC | ||
| B | Z367 | BK | 0.75 | GROUND | AHC | ||
| C | B400 | DB | 2.5 | TRAILER TOW ELECTRIC BRAKE OUTPUT | TRAILER TOW | ||
| D | W752 | WH/VT | 0.75 | TRAILER TOW RIGHT STOP/TURN SIGNAL | AHC | ||
| E | A100 | RD/WH | 0.5 | FUSED B(+) | AHC | ||
| F | W756 | WH/GN | 0.75 | TRAILER TOW PARK LIGHT | AHC | ||
| G | W753 | DB/WH | 0.75 | TRAILER TOW LEFT STOP/TURN SIGNAL | AHC | ||
|
|||||||
