Seat Belt-Buckle TENSIONER-Center (Standard) Connector End View (D67461A)

Harness-Family: Seat_Center

Color: GRAY

Gender: MALE

Part Number: 7282-6443-40

Part Description: Not Available

Connector No: D67461A

Option: Standard

Repair Kit Part Number: Not Available

Cavity Count: null

Fig 1: Seat Belt-Buckle Tensioner-Center Connector End View (Standard)

Courtesy of CHRYSLER

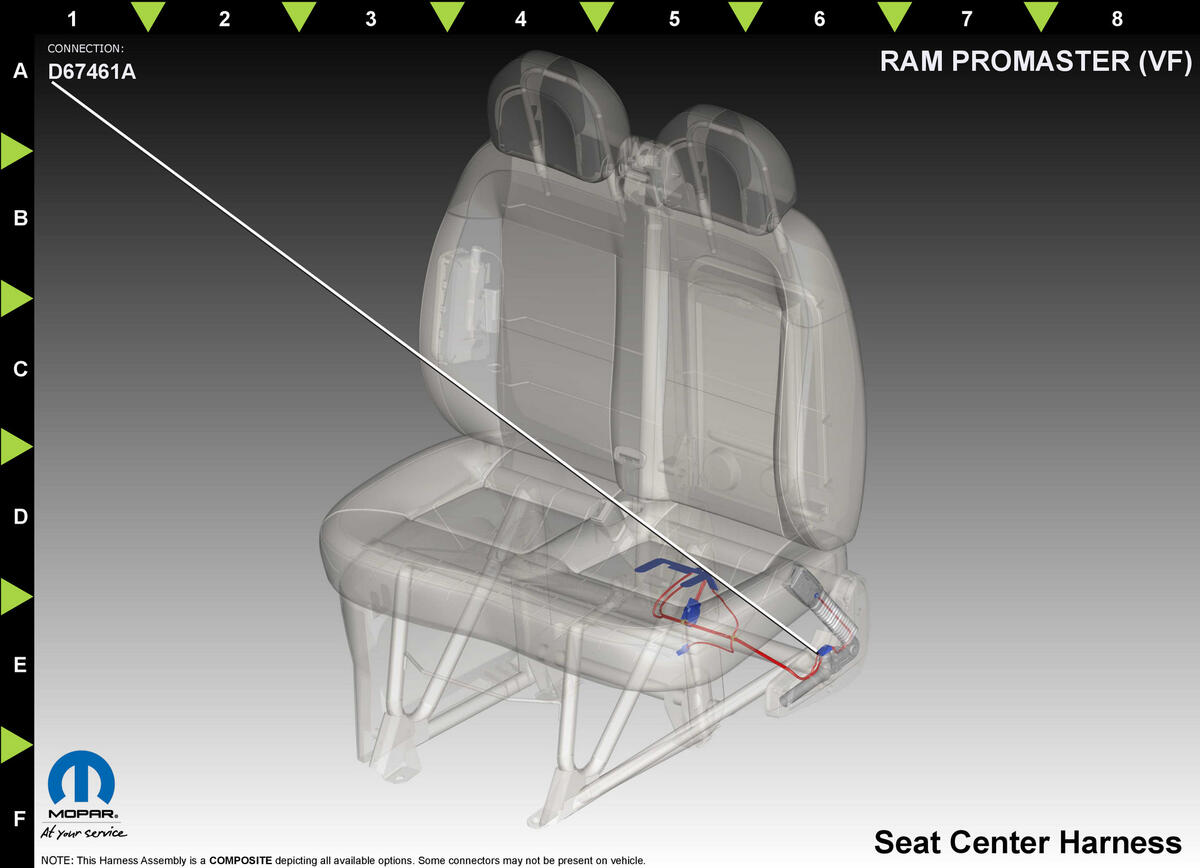

Fig 2: Seat Belt-Buckle Tensioner-Center Component Location (Standard)

Courtesy of CHRYSLER

Circuit

Wire Color

Gauge/Size

Function

Option

R270

0.5

CENTER SEAT BELT TENSIONER LINE 1

PASSENGER DOUBLE SEAT

R269

0.5

CENTER SEAT BELT TENSIONER LINE 2

PASSENGER DOUBLE SEAT

⁽¹⁾	Pins not listed are not used for this connector
