S3212P (Standard) Connector End View (S3212P)

Harness-Family: IP

Color: NA

Gender: FEMALE

Part Number: AGV36375

Part Description: Not Available

Connector No: S3212P

Option: Standard

Repair Kit Part Number: Not Available

Cavity Count: null

Fig 1: S3212p Connector End View (Standard)

GCWD1006420

Courtesy of CHRYSLER

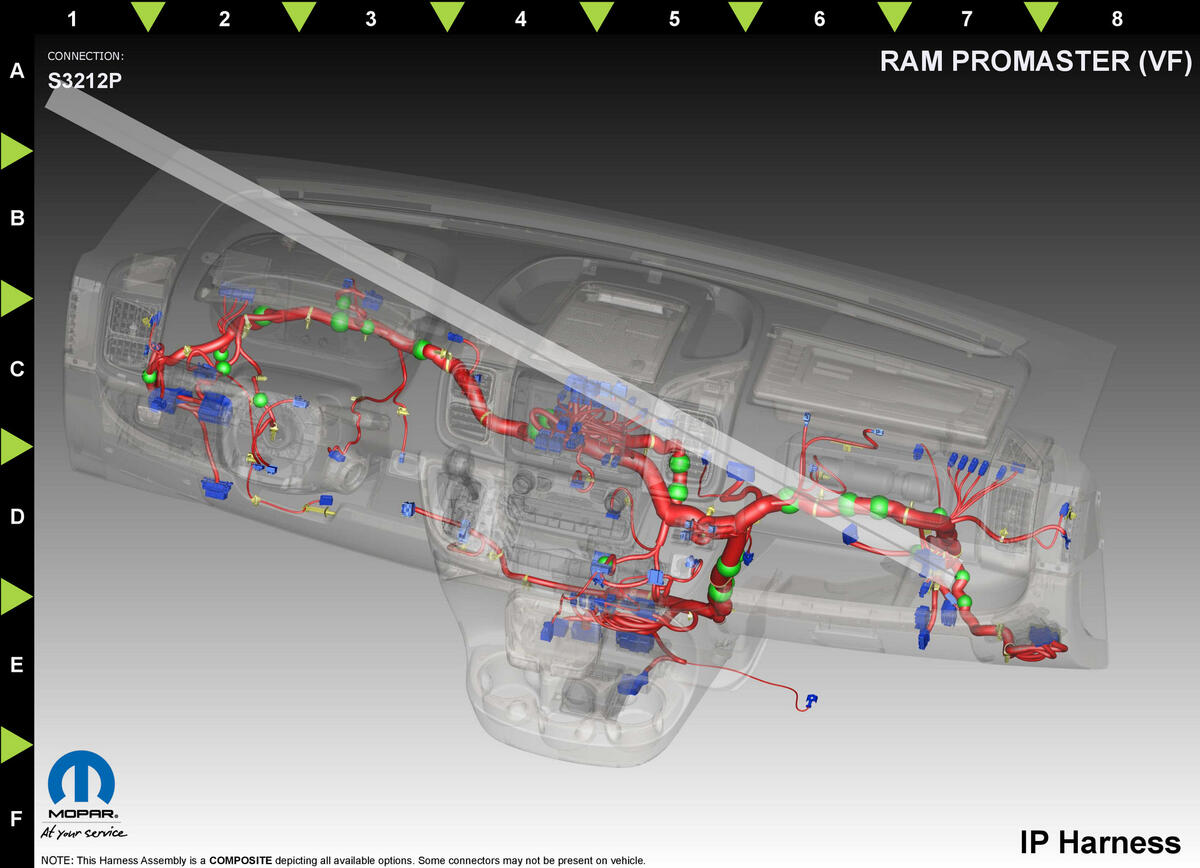

Fig 2: S3212p Component Location (Standard)

GCWD1293922

Courtesy of CHRYSLER

Pin

Circuit

Wire Color

Gauge/Size

Function

Option

2

D443

BN/GN

0.35

CAN C (-)

N/A

3

D443

BN

0.35

CAN C (-)

N/A

4

D443

BN

0.35

CAN C (-)

N/A

5

D443

BN

0.35

CAN C (-)

N/A

⁽¹⁾	Pins not listed are not used for this connector
