Heater-Seat Cushion-Right (Standard) Connector End View (D6719A)

Harness-Family: Seat_Heater_Rt

Color: null

Gender: MALE

Part Number: --

Part Description: Not Available

Connector No: D6719A

Option: Standard

Repair Kit Part Number: Not Available

Cavity Count: null

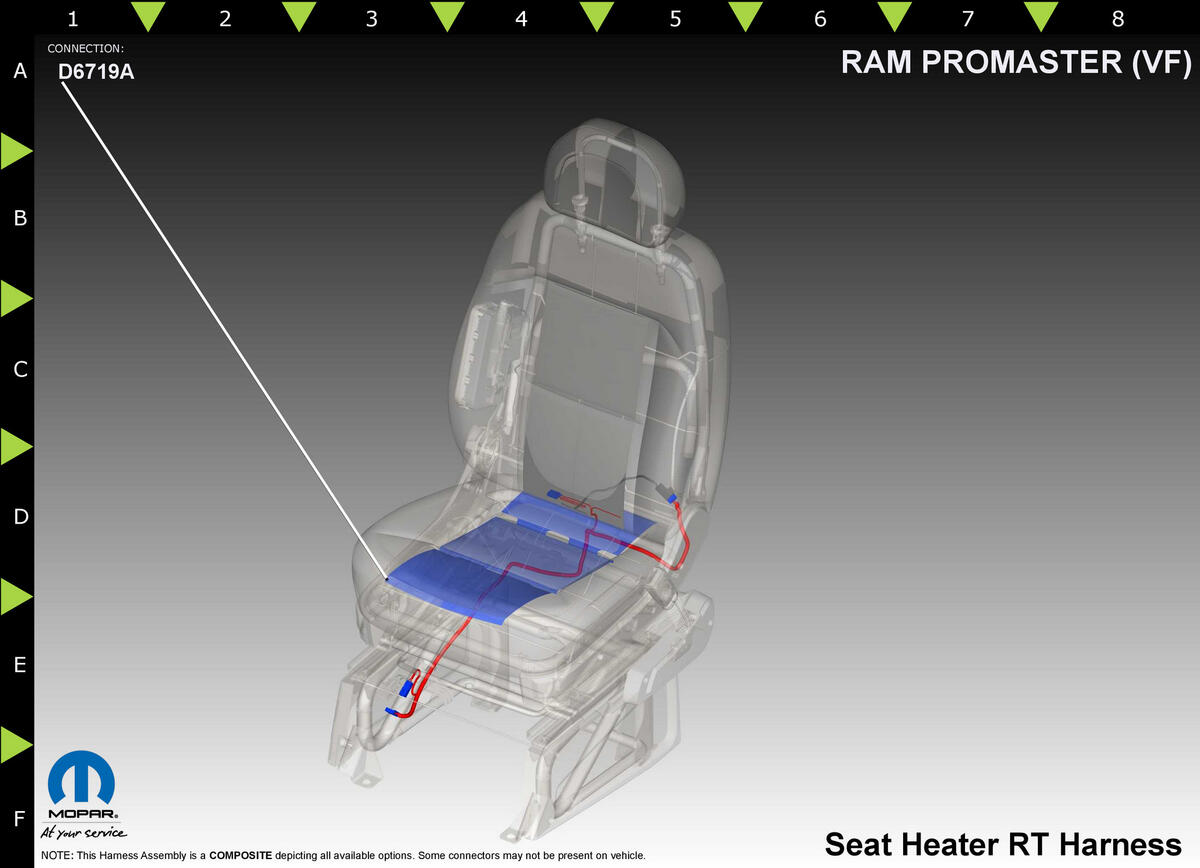

Fig 1: Heater-Seat Cushion-Right Component Location (Standard)

Courtesy of CHRYSLER

Circuit

Wire Color

Gauge/Size

Function

Option

P188

0.75

RIGHT FRONT SEAT HEATER CONTROL

HEATED PASSENGER SEAT

P188

0.75

RIGHT FRONT SEAT HEATER CONTROL

HEATED PASSENGER SEAT

⁽¹⁾	Pins not listed are not used for this connector
