Heater-Seat Cushion-Left (Standard) Connector End View (D6718A)

Harness-Family: Seat_Heater_Lt

Color: null

Gender: MALE

Part Number: --

Part Description: Not Available

Connector No: D6718A

Option: Standard

Repair Kit Part Number: Not Available

Cavity Count: null

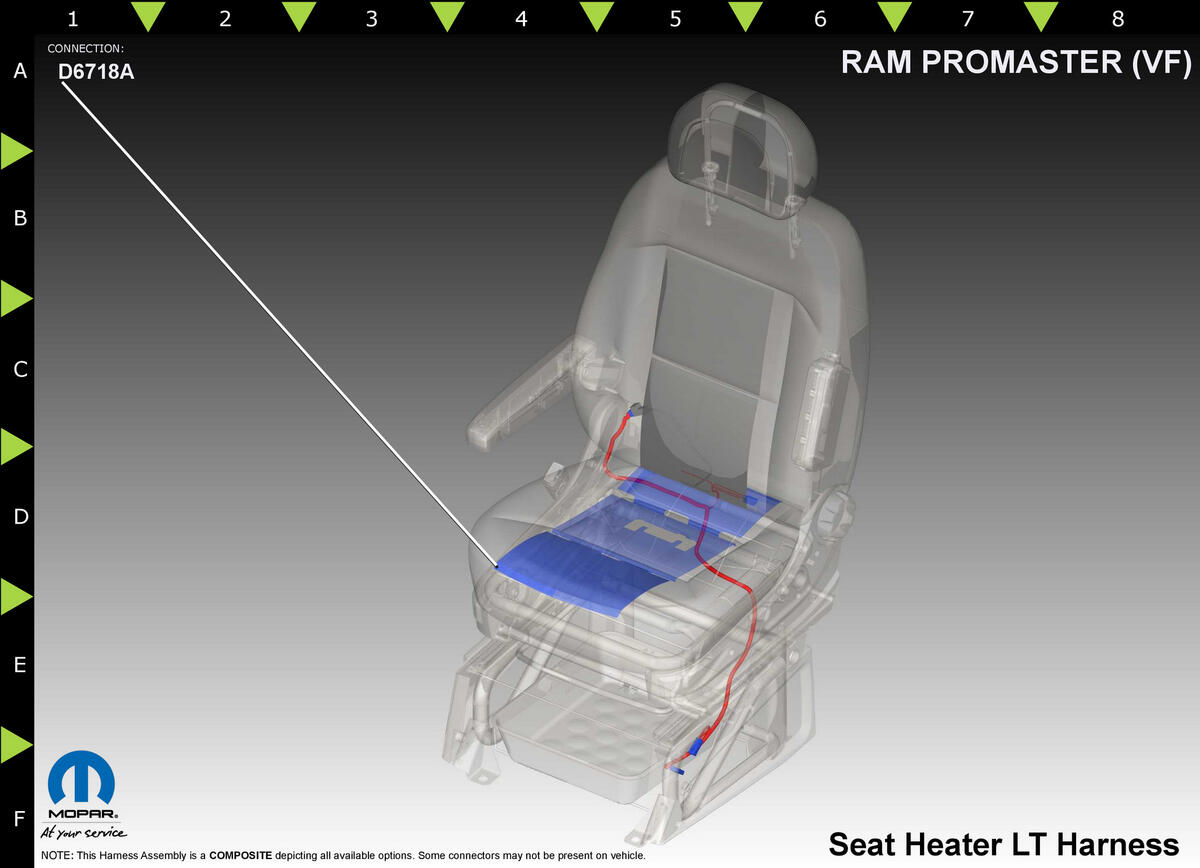

Fig 1: Heater-Seat Cushion-Left Component Location (Standard)

Courtesy of CHRYSLER

Circuit

Wire Color

Gauge/Size

Function

Option

P187

0.75

LEFT FRONT SEAT HEATER CONTROL

HEATED DRIVER SEAT

P187

0.75

LEFT FRONT SEAT HEATER CONTROL

HEATED DRIVER SEAT

⁽¹⁾	Pins not listed are not used for this connector
