G001AA (Standard) Connector End View (G001AA)

Harness-Family: Body_Front

Color: NA

Gender: FEMALE

Part Number: 1/10203/54

Part Description: Not Available

Connector No: G001AA

Option: Standard

Repair Kit Part Number: Not Available

Cavity Count: null

Fig 1: G001aa Connector End View (Standard)
GCWD1013721Courtesy of CHRYSLER

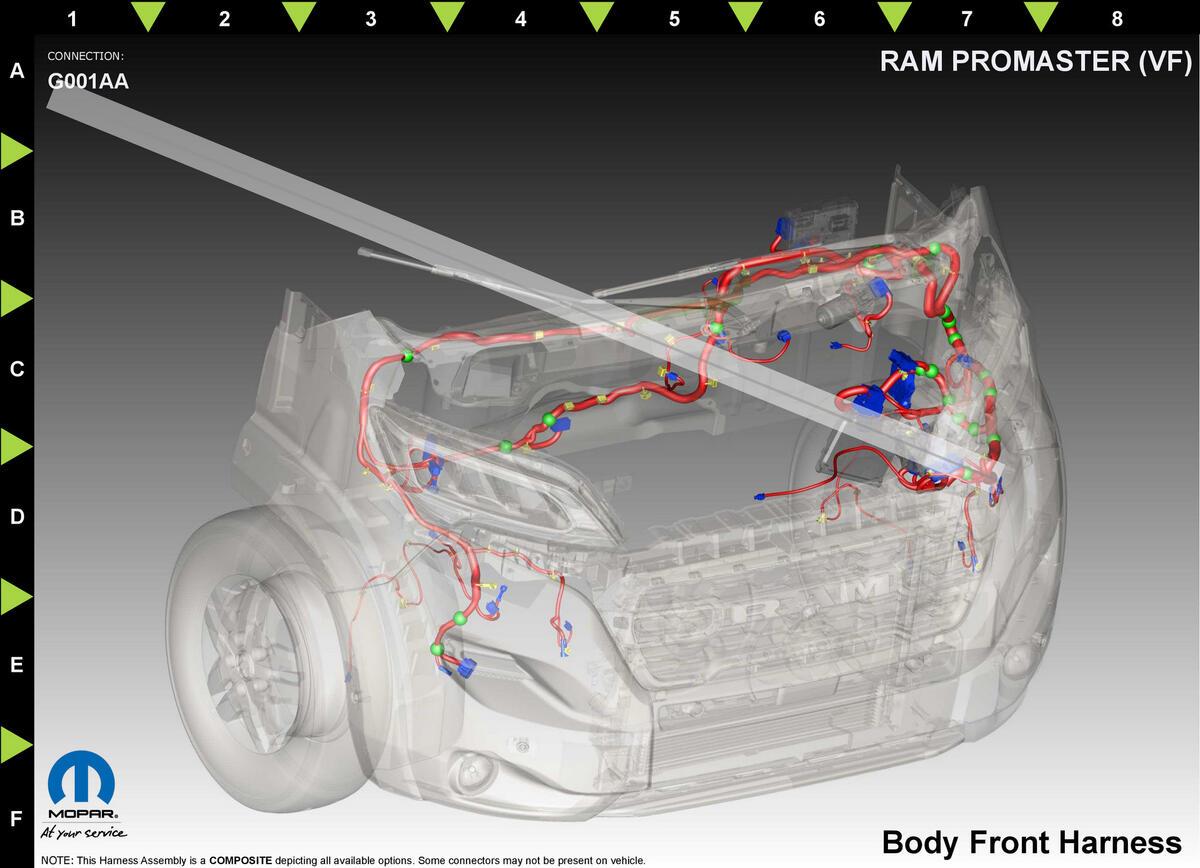

Fig 2: G001aa Component Location (Standard)
GCWD1293483Courtesy of CHRYSLER
Pin Circuit Wire Color Gauge/Size Function Option
1 Z909 BK 0.5 GROUND N/A
1 Z930 BK 0.5 GROUND N/A
(1) Pins not listed are not used for this connector
