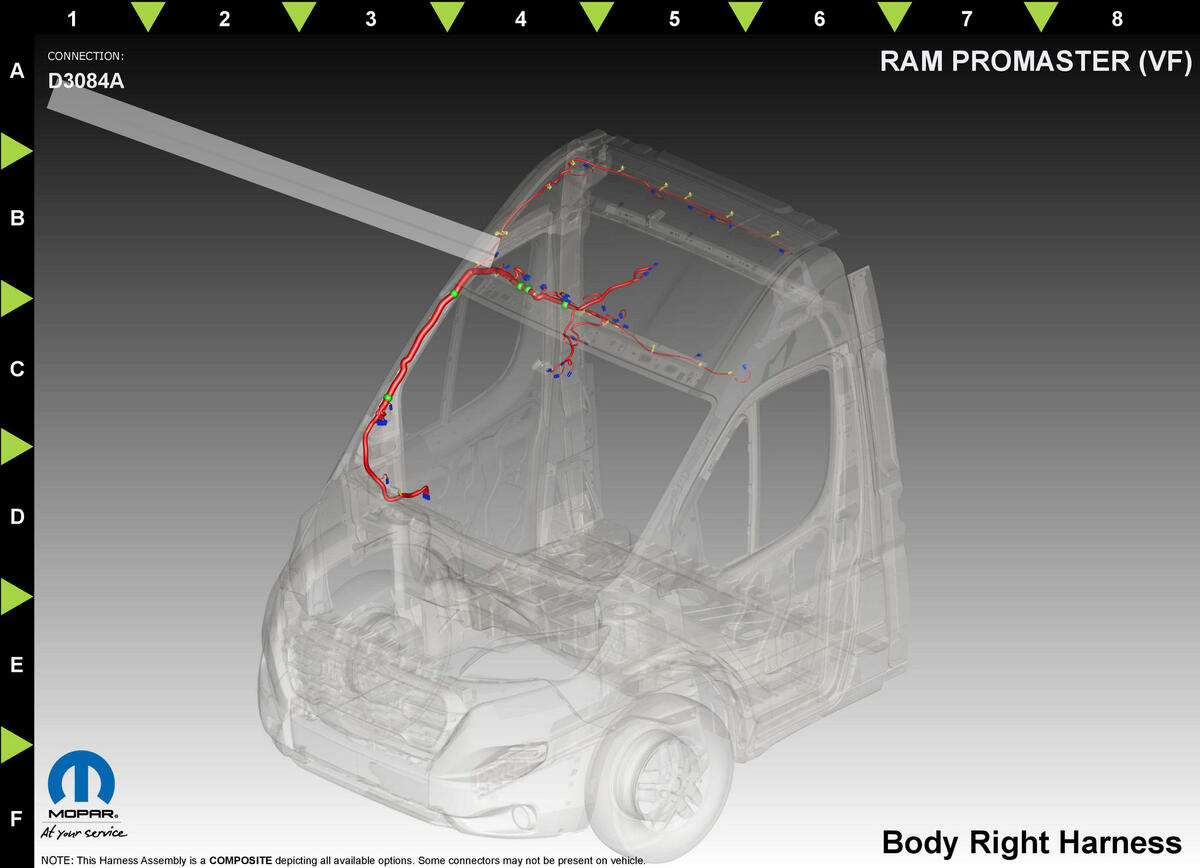

Airbag-Side Curtain-Right (Standard) Connector End View (D3084A)
Harness-Family: Body_Right
Color: BLACK
Gender: FEMALE
Part Number: 1/16286/97
Part Description: Not Available
Connector No: D3084A
Option: Standard
Repair Kit Part Number: Not Available
Cavity Count: null
| Pin | Circuit | Wire Color | Gauge/Size | Function | Option | ||
|---|---|---|---|---|---|---|---|
| 1 | R4 | GN | 0.5 | RIGHT CURTAIN SQUIB 1 LINE 1 | ADVANCED FRONT AIR BAGS | ||
| 2 | R2 | WH | 0.5 | RIGHT CURTAIN SQUIB 1 LINE 2 | ADVANCED FRONT AIR BAGS | ||
|
|||||||
