Airbag-Side Curtain-Left (Standard) Connector End View (D3083A)

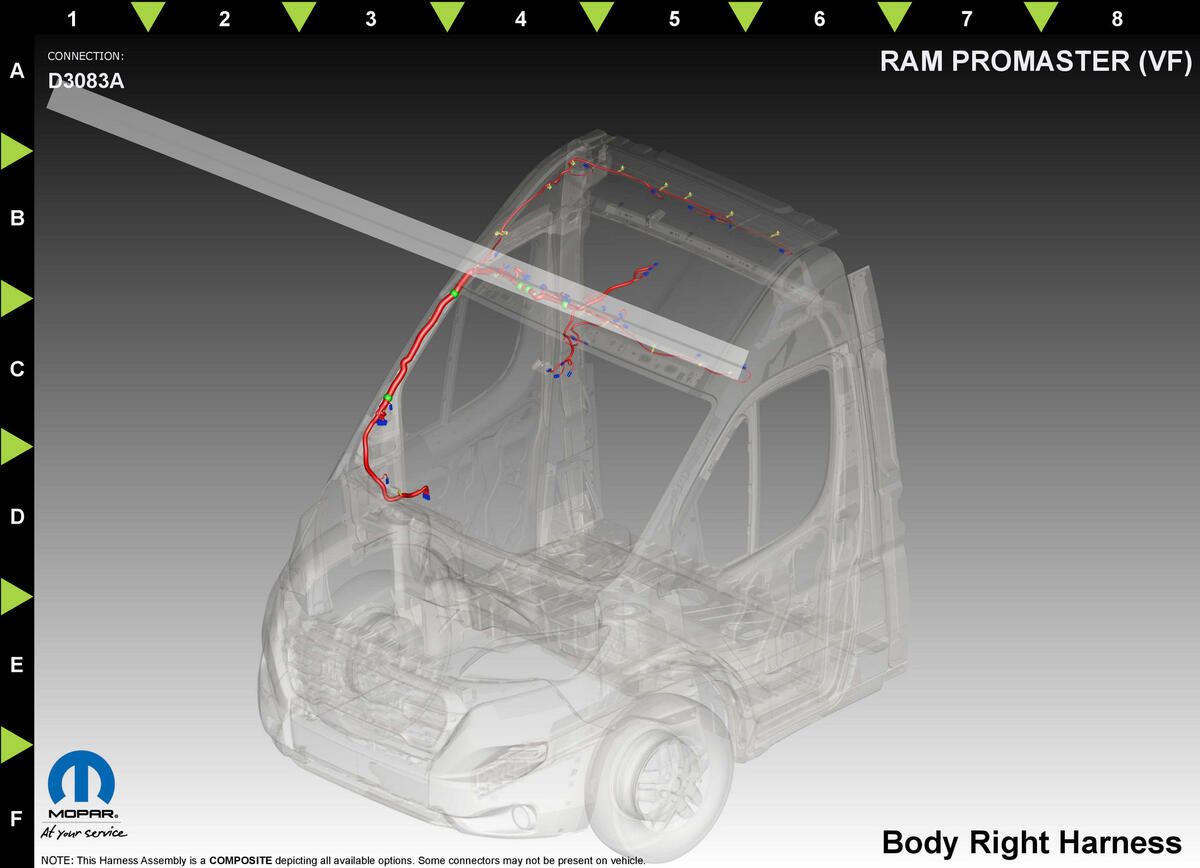

Harness-Family: Body_Right
Color: BLACK
Gender: FEMALE
Part Number: 1/16286/97
Part Description: Not Available
Connector No: D3083A
Option: Standard
Repair Kit Part Number: Not Available
Cavity Count: null
| Pin | Circuit | Wire Color | Gauge/Size | Function | Option | ||
|---|---|---|---|---|---|---|---|
| 1 | R3 | BN | 0.5 | LEFT CURTAIN SQUIB 1 LINE 1 | ADVANCED FRONT AIR BAGS | ||
| 2 | R1 | DB | 0.5 | LEFT CURTAIN SQUIB 1 LINE 2 | ADVANCED FRONT AIR BAGS | ||
|
|||||||
