Resonator, Exhaust: Installation
WARNING: This page is about a different variant/trim than selected.

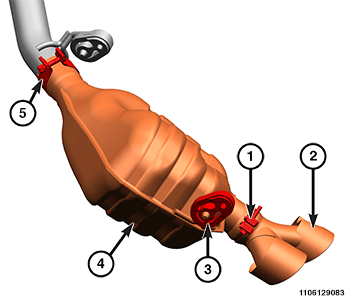

- Install the exhaust resonator (4) and tighten the exhaust clamp nut (5) to the proper specification. Refer to TORQUE SPECIFICATIONS .
- Install the exhaust isolator (3).
- If removed, install the exhaust tip (2) and tighten the exhaust clamp nut (1) to the proper specification. Refer to TORQUE SPECIFICATIONS .
- Remove the jack supporting the exhaust system.
- Remove the support and lower the vehicle.
- Start the engine and inspect for exhaust leaks. Repair exhaust leaks as necessary.
