Seal, Torque Converter Hub: Installation

WARNING: This page is about a different variant/trim than selected.

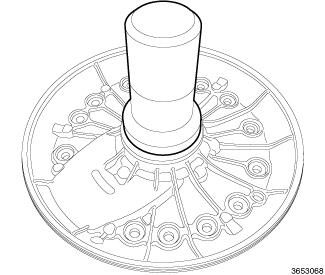

GC0209081Courtesy of CHRYSLER GROUP, LLC
  1. Position the torque converter hub seal over the input shaft and against the transmission oil pump cover.
  2. Using (special tool #10375, Installer, Oil Pump Cover Oil Seal) install a new torque converter hub seal.
  3. Install the torque converter. Refer to TORQUE CONVERTER, INSTALLATION .
