All Wheel Drive

WARNING: This page is about a different variant/trim than selected.

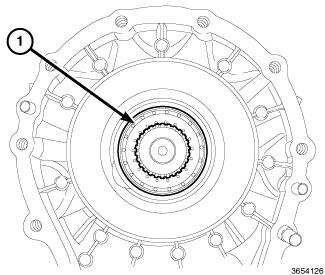

GC0209080Courtesy of CHRYSLER GROUP, LLC
  1. Remove the transfer case. Refer to REMOVAL MP3010 or REMOVAL MP3023 .
  2. Remove the output shaft seal (1) with suitable screw and slide hammer.
