Pump, Transmission Oil: Installation

WARNING: This page is about a different variant/trim than selected.

NOTE:

If oil pump was disassembled, replace all O-rings.

Courtesy of CHRYSLER GROUP, LLC

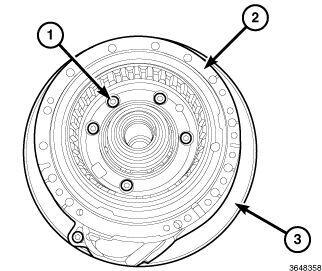

Install the drive sprocket, chain and pump body (1) as an assembly into the oil pump housing.

Courtesy of CHRYSLER GROUP, LLC
Set the pump cover (1) onto the oil pump housing (2).

Courtesy of CHRYSLER GROUP, LLC

NOTE:
The oil pump bolts under the A-clutch must be replaced.
Install NEW oil pump housing to cover bolts (1) and tighten to the proper specification. Refer to TORQUE SPECIFICATIONS .

Courtesy of CHRYSLER GROUP, LLC
Install the piston plate and the piston retainer.

Courtesy of CHRYSLER GROUP, LLC
Position the oil pump housing assembly (4) in a suitable arbor press.
Using (special tool #8285, Compressor, Spring) (1), press on the fingers of the piston retainer and install the two halves of the retaining ring (2).

Courtesy of CHRYSLER GROUP, LLC
Install the hub (3).
Install the clutches and spacers (4).
Install the snap ring (2).
Install the outer ring (1) (inside B-piston).
Install the B-piston.

Courtesy of CHRYSLER GROUP, LLC

NOTE:
Firmly press the oil pump in place hand before drawing it in with bolts.
Install the 14 NEW oil pump cover retaining bolts (2) and tighten the oil pump cover as follows:
1. In order to seat the oil pump cover properly, pre tighten bolts one, seven and nine to 6 N.m (53 in. lb.).
2. Working in a clockwise pattern, beginning with number one, tighten to 10 N.m (89 in. lb.).
3. Working in a clockwise pattern, beginning with number one, tighten an additional 90°.
Courtesy of CHRYSLER GROUP, LLC
Install the NEW input shaft O-ring (1).
Install the valve body. Refer to VALVE BODY, INSTALLATION .
Install the transmission. Refer to INSTALLATION .
