Throttle Body: Removal: 5.7L

WARNING: This page is about a different variant/trim than selected.
GC0208685Courtesy of CHRYSLER GROUP, LLC
  1. Perform the fuel pressure release procedure. Refer to FUEL SYSTEM PRESSURE RELEASE  .
  2. Disconnect the negative battery cable (2).
    GC0209731Courtesy of CHRYSLER GROUP, LLC
  3. Remove the oil fill cap (1).
  4. Remove the engine cover (2).
    GC0209345Courtesy of CHRYSLER GROUP, LLC
  5. Disconnect the electrical connector at the Intake Air Temperature (IAT) sensor (1).
  6. Loosen the hose clamp at the air cleaner housing (2).
  7. Remove the resonator retaining bolt (3).
  8. Loosen the hose clamp at the throttle body (4) and remove the resonator.

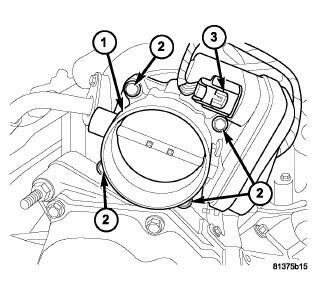

    GC0209297Courtesy of CHRYSLER GROUP, LLC
  9. Disconnect the electrical connector at the throttle body (3).
  10. Remove the four throttle body retaining bolts (2).
  11. Remove the throttle body (1) from the intake manifold.

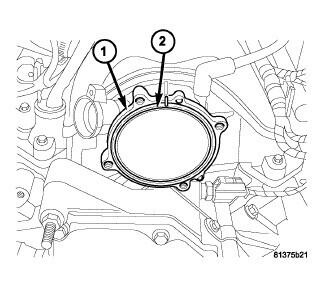

    GC0209296Courtesy of CHRYSLER GROUP, LLC
  12. Check the throttle body O-ring (2), replace if necessary.
