Sensor, Manifold Absolute Pressure (Map): Removal: 5.7L/6.4L

WARNING: This page is about a different variant/trim than selected.

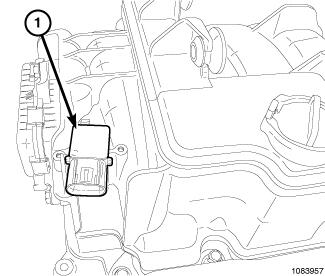

GC0209305Courtesy of CHRYSLER GROUP, LLC
  1. Disconnect Map sensor (1) electrical connector.
  2. Rotate MAP sensor (1) counterclockwise for removal.

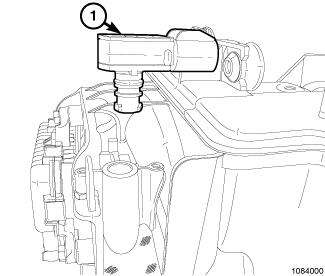

    GC0209303Courtesy of CHRYSLER GROUP, LLC
  3. Lift MAP sensor (1) upward.
    GC0209304Courtesy of CHRYSLER GROUP, LLC
  4. Inspect O-ring (2) for damage.
