Chain And Sprockets, Timing: Installation
WARNING: This page is about a different variant/trim than selected.

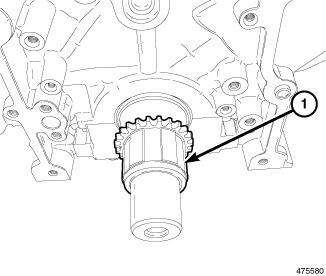

- Install the crankshaft sprocket (1) and position halfway onto the crankshaft.

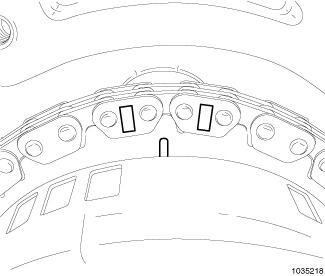

- While holding the camshaft phaser in hand, position the timing chain on the camshaft phaser and align the timing marks as shown.

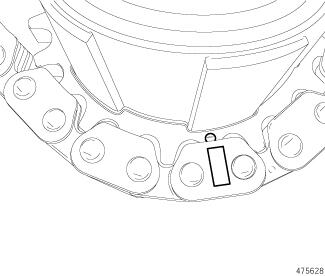

- While holding the camshaft phaser and timing chain in hand, position the timing chain on the crankshaft sprocket and align the timing mark as shown.
- Align the slot in the camshaft phaser with the dowel on the camshaft and position the camshaft phaser on the camshaft while sliding the crankshaft sprocket into position.

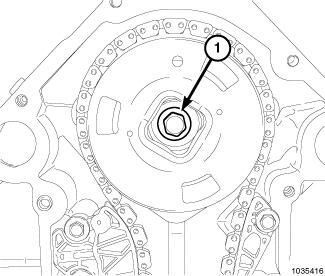

- Install the camshaft phaser retaining bolt (1) finger tight.
- If removed, install the timing chain guide (1) and tighten the bolts (2) to the proper specification. Refer to TORQUE SPECIFICATIONS
.
- If removed, install the timing chain tensioner (2) and tighten the bolts (3) to the proper specification. Refer to TORQUE SPECIFICATIONS .
- If installed, remove the Tensioner Pin (special tool #8514A, Pins, Tensioner) (1) from the chain tensioner arm.
- Using care, rotate the crankshaft to verify the alignment of the timing marks (1, 2). If the timing marks do not line up, remove the camshaft sprocket and realign.
- Tighten the camshaft phaser bolt (1) to the proper specification. Refer to TORQUE SPECIFICATIONS .
- Install the engine oil pump. Refer to PUMP, ENGINE OIL, INSTALLATION .
- Start the engine and check for leaks.
