Left Exhaust Manifold

WARNING: This page is about a different variant/trim than selected.
  1. Disconnect and isolate the negative battery cable.
  2. Recover the refrigerant from the refrigerant system. Refer to REFRIGERANT SYSTEM RECOVERY or R-1234YF REFRIGERANT SYSTEM RECOVERY .
  3. Remove the front skid plate. Refer to PLATE, SKID, FRONT, REMOVAL .
  4. Remove the catalytic converter. Refer to CONVERTER, CATALYTIC, REMOVAL .
  5. Remove the left side ignition coils. Refer to COIL, IGNITION, REMOVAL .

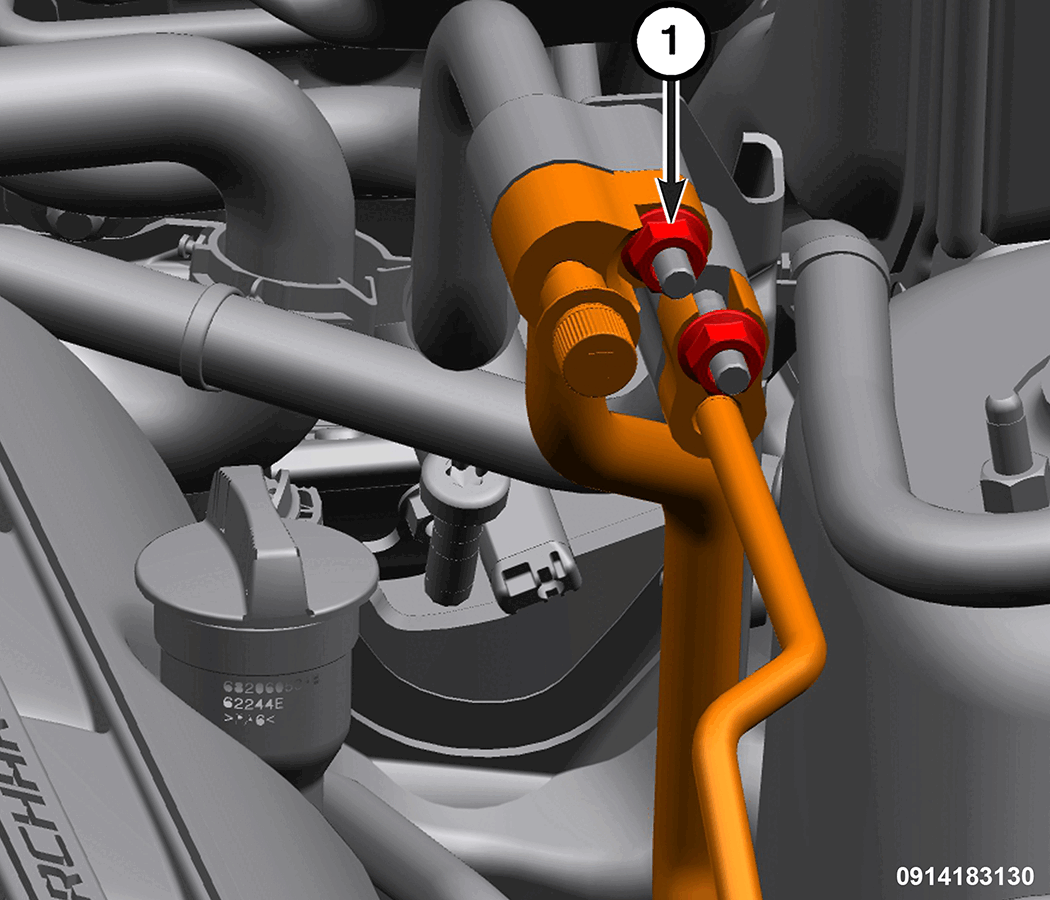

    GC0202836Courtesy of CHRYSLER GROUP, LLC
  6. Remove the nuts (1) the secure the A/C suction and liquid lines to the jumper line assembly.
  7. Install plugs in, or tape over all of the opened refrigerant line fittings then position the lines aside.

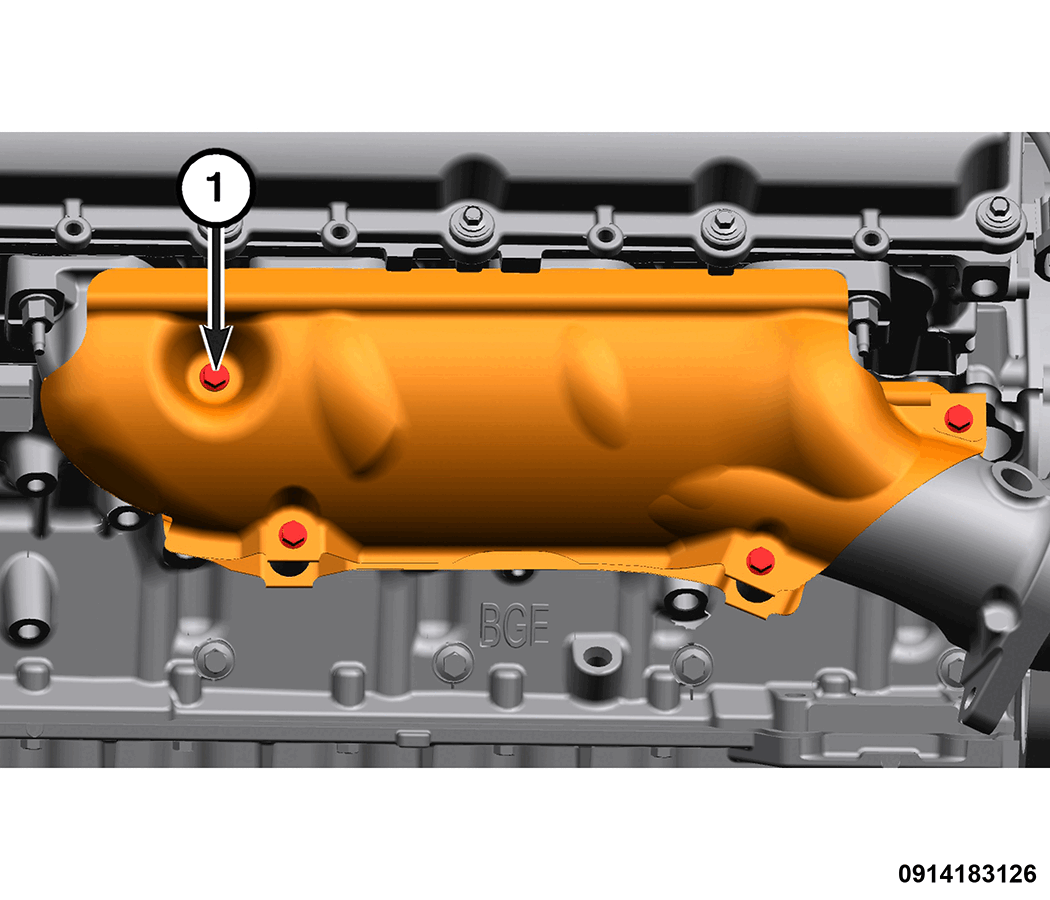

    GC0202830Courtesy of CHRYSLER GROUP, LLC
  8. Remove the exhaust manifold heat shield fasteners (1) and remove the heat shield.

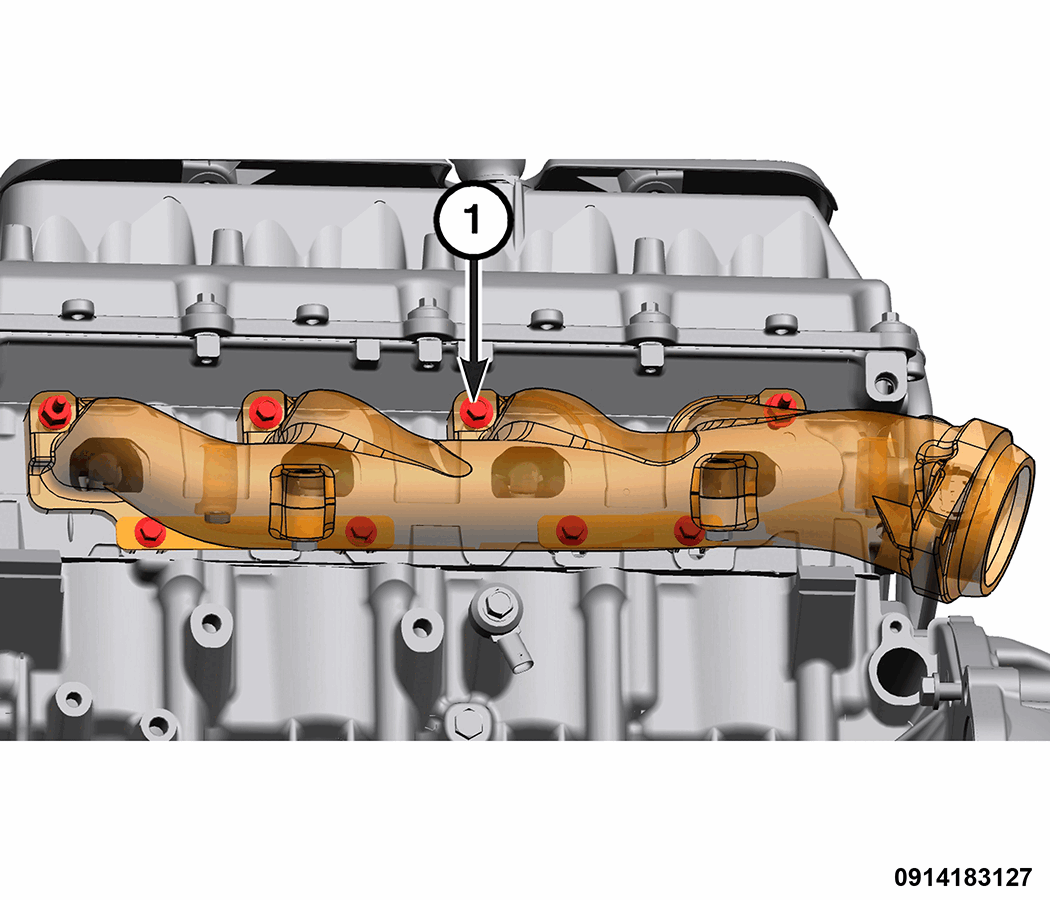

    GC0202834Courtesy of CHRYSLER GROUP, LLC
  9. Remove the fasteners (1) and remove the left side exhaust manifold.

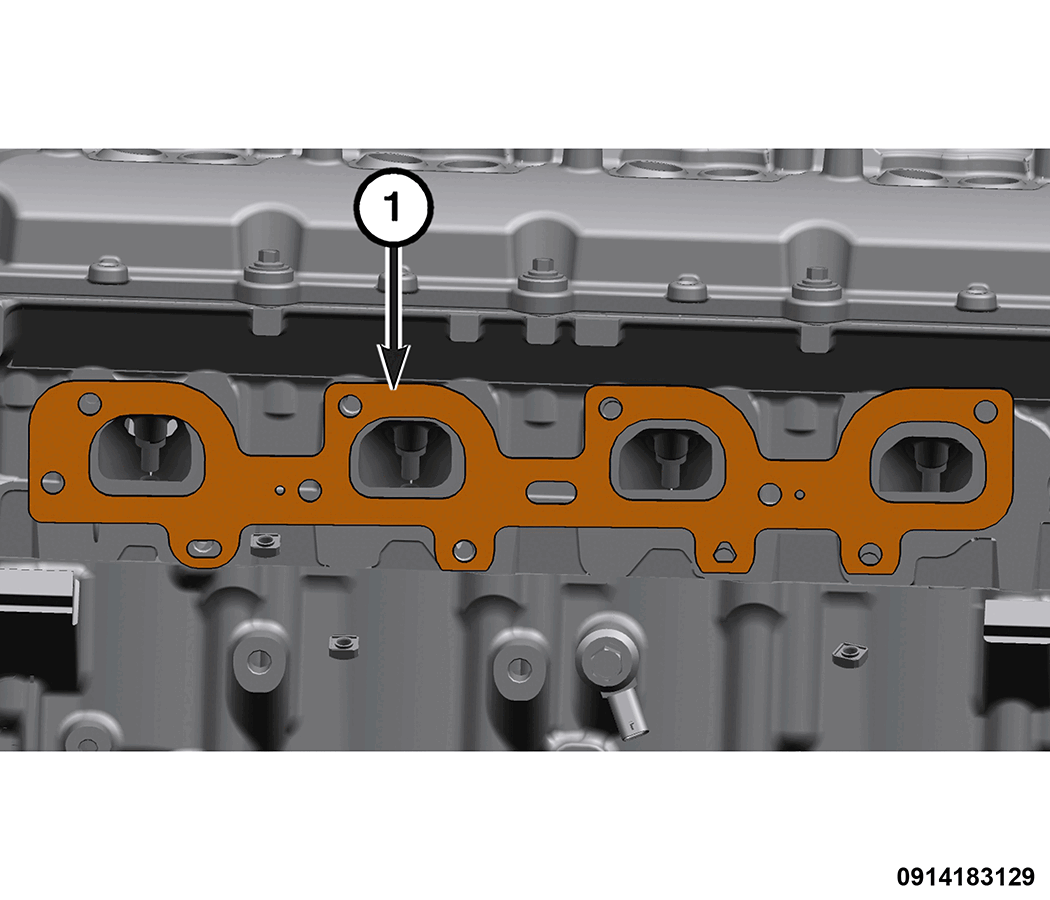

    GC0202837Courtesy of CHRYSLER GROUP, LLC
  10. Remove and discard the exhaust manifold gasket (1).
