Left Exhaust Manifold

WARNING: This page is about a different variant/trim than selected.
  1. Clean the sealing surfaces of the exhaust manifold and cylinder head.
    GC0202837Courtesy of CHRYSLER GROUP, LLC
  2. Using a NEW  exhaust manifold gasket (1), position the exhaust manifold to the cylinder head.

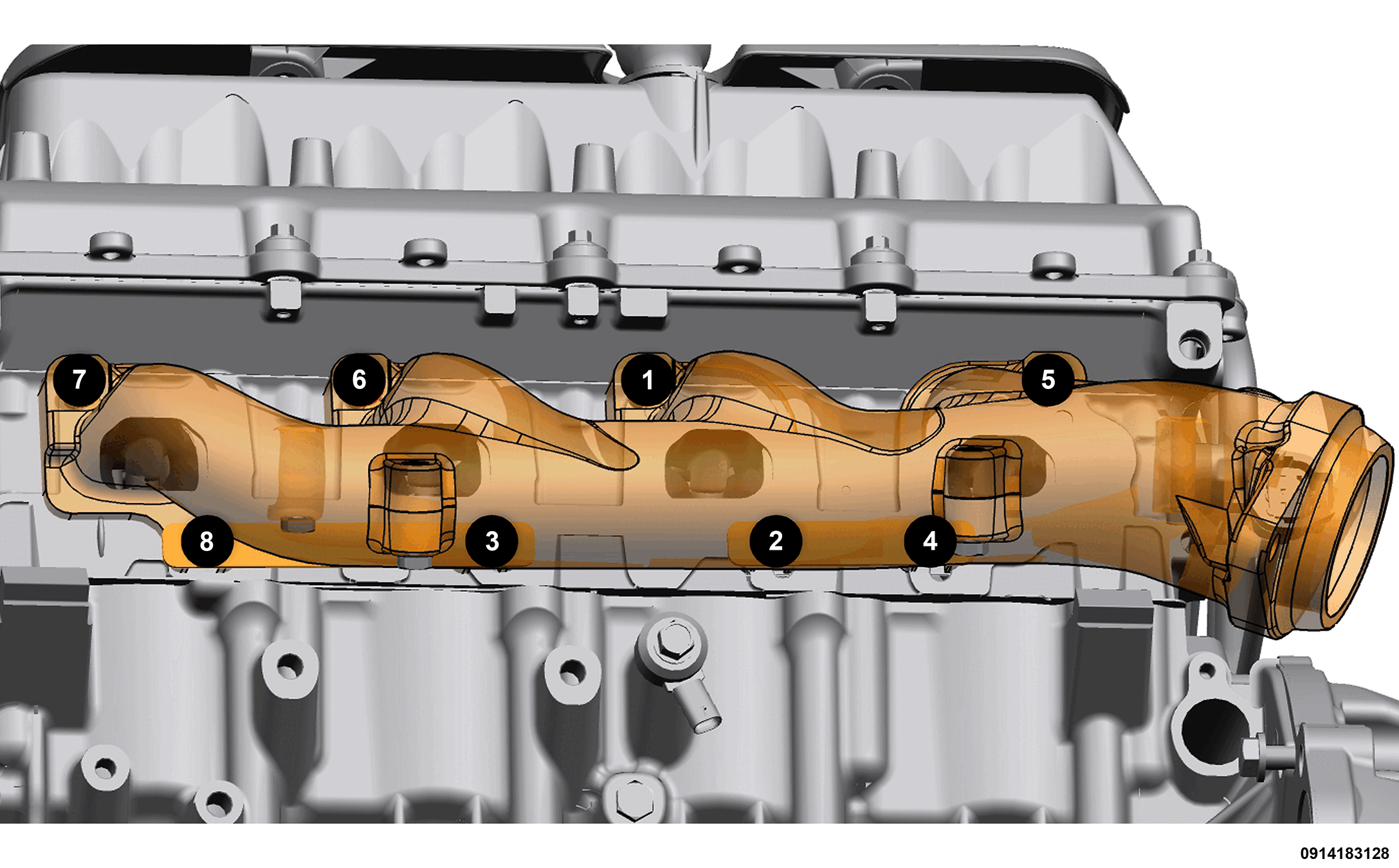

    Fig 1: LH Exhaust Manifold Tightening Sequence
    GC0202843Courtesy of CHRYSLER GROUP, LLC
  3. First install the NEW  exhaust manifold retaining bolts finger tight.
  4. Using the sequence shown, tighten the retaining bolts to the proper specification. Refer to TORQUE SPECIFICATIONS  .
    GC0202830Courtesy of CHRYSLER GROUP, LLC
  5. Install the exhaust manifold heat shield and tighten the fasteners (1) to the proper specification. Refer to TORQUE SPECIFICATIONS  .
    GC0202836Courtesy of CHRYSLER GROUP, LLC
  6. Remove the tape or plugs from the opened refrigerant line fittings.
  7. Lubricate the NEW  seals with clean refrigerant oil and install them on the refrigerant line fittings. Use only the specified seals as they are made of a special material for the refrigerant used in the system. Use only refrigerant oil of the type recommended for the A/C compressor in the vehicle.
  8. Install the A/C suction and liquid lines to the jumper line assembly and tighten the nuts (1) to the proper specification. Refer to FASTENER TORQUE .
  9. Install the left side ignition coils. Refer to COIL, IGNITION, INSTALLATION .
  10. Install the catalytic converter. Refer to CONVERTER, CATALYTIC, INSTALLATION .
  11. Install the front skid plate. Refer to PLATE, SKID, FRONT, INSTALLATION .
  12. Connect the negative battery cable.
  13. Charge the refrigerant system. Refer to REFRIGERANT SYSTEM CHARGE or R-1234YF REFRIGERANT SYSTEM CHARGE .
  14. Start the engine and check for leaks.
