Sensor, Oil Temperature: Installation

WARNING: This page is about a different variant/trim than selected.

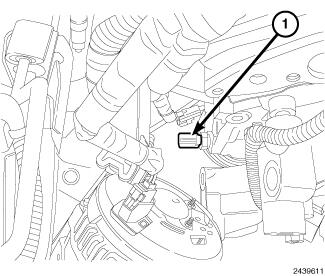

GC0209509Courtesy of CHRYSLER GROUP, LLC
NOTE:

Apply Mopar® Thread Sealant with PTFE to the sensor threads before installing into the engine block.

  1. Install the oil temperature sensor (1) and tighten to the proper specification. Refer to TORQUE SPECIFICATIONS  .
    GC0209510Courtesy of CHRYSLER GROUP, LLC
  2. Connect the oil temperature sensor wire harness connector (1).
  3. Install the generator. Refer to GENERATOR, INSTALLATION .
