Jet, Piston Oil Cooler: Installation

WARNING: This page is about a different variant/trim than selected.

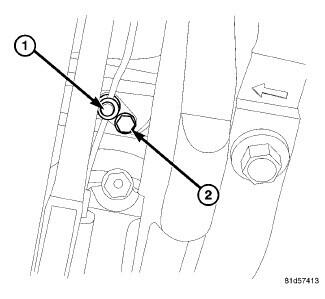

GC0209589Courtesy of CHRYSLER GROUP, LLC
  1. Position the piston oil cooler jet (1).
  2. Install the piston oil cooler jet retaining bolt (2) and tighten to the proper specification. Refer to TORQUE SPECIFICATIONS  .
  3. Install the engine oil pump pickup tube and oil pan. Refer to PAN, OIL, INSTALLATION  .
