Lifter(S), Hydraulic, Roller: Installation
WARNING: This page is about a different variant/trim than selected.

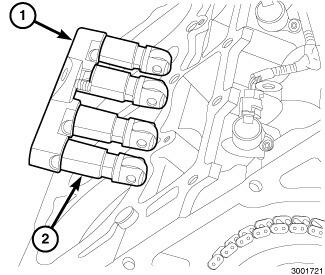

- Lubricate the lifters (2) and retainer (1) assembly with clean engine oil.CAUTION:
If the lifter and retainer assembly are to be reused, identify the lifters to ensure installation in their original location or engine damage could result.
CAUTION:The lifter and retainer must be installed as an assembly.
- Install the lifters (2) and retainer (1) as an assembly into their original location.

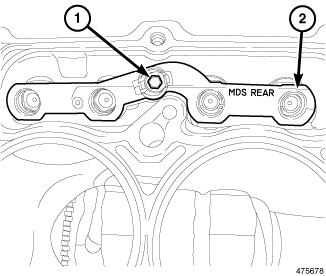

- Tighten the lifter retainer bolt (1) to the proper specification. Refer to TORQUE SPECIFICATIONS .
- Install the cylinder head. Refer to CYLINDER HEAD, INSTALLATION .
- Connect the negative battery cable.CAUTION:
To prevent damage to valve assemblies, do not run the engine above fast idle until all hydraulic lifters have filled with oil and have become quiet.
