Rocker Arm, Valve: Removal

WARNING: This page is about a different variant/trim than selected.
  1. Remove the cylinder head cover. Refer to COVER(S), CYLINDER HEAD, REMOVAL .

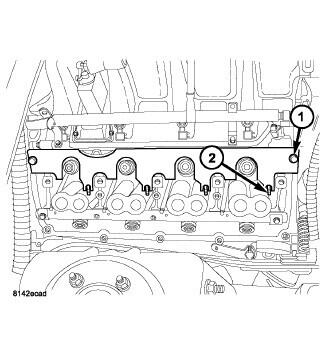

    GC0209719Courtesy of CHRYSLER GROUP, LLC
  2. Install Push Rod Retainer (special tool #9070, Retainer, Push Rod) (1).
    GC0209720Courtesy of CHRYSLER GROUP, LLC
  3. Using the sequence shown, loosen the rocker shaft assemblies.
    CAUTION:

    The rocker shaft assemblies are not interchangeable between intake and exhaust. The intake rocker arms are marked with an "I".

  4. Remove the rocker shaft assemblies. Note the location for reassembly.
    CAUTION:

    The longer pushrods are for the exhaust side, and the shorter pushrods are for intake side.

  5. Remove the push rods. Note the push rod location for reassembly.

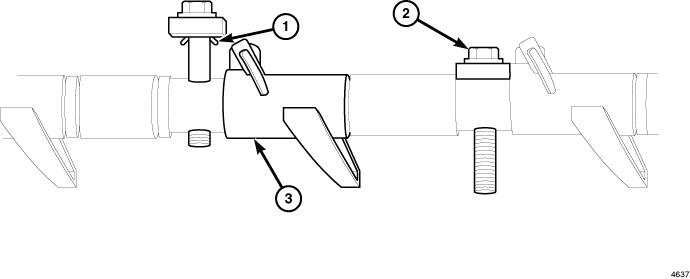

GC0209718Courtesy of CHRYSLER GROUP, LLC
CAUTION:

Do not remove the retainers from the rocker shaft assemblies. The assembly tangs (1) at the bottom of the retainers can be damaged, causing the assembly tangs to break off and get into the engine.
