Section 2 (5.7L Engine (Service Information) (1 Of 2)): Removal

WARNING: This page is about a different variant/trim than selected.
CAUTION:

If the engine encounters a catastrophic failure, the engine oil cooler and lines must be replaced or damage to the new engine or components could result.

CAUTION:

If the original engine has experienced a catastrophic failure or an individual failure with the piston, cylinder bore, engine block, valve or valve seat, the intake manifold MUST be replaced with a new manifold.

GC0209731Courtesy of CHRYSLER GROUP, LLC
  1. Remove the hood. Refer to HOOD, REMOVAL .
  2. Remove the oil fill cap (1).
  3. Remove the engine cover (2).
    GC0208685Courtesy of CHRYSLER GROUP, LLC
  4. Perform the fuel pressure release procedure. Refer to FUEL SYSTEM PRESSURE RELEASE .
  5. Disconnect and isolate the negative battery cable (2).
  6. Remove the air cleaner and resonator assembly. Refer to BODY, AIR CLEANER, REMOVAL  .
    GC0209802Courtesy of CHRYSLER GROUP, LLC
  7. Remove the cowl panel cover (2). Refer to COVER, COWL PANEL, REMOVAL .
    GC0209796Courtesy of CHRYSLER GROUP, LLC
    CAUTION:

    When servicing or replacing exhaust system components, disconnect the oxygen sensor connector(s). Allowing the exhaust to hang by the oxygen sensor wires will damage the harness or sensor.

  8. Disconnect the left upstream 02 sensor electrical connector (1).
    GC0209795Courtesy of CHRYSLER GROUP, LLC
  9. Disconnect the right upstream 02 sensor electrical connector (1).
  10. Raise and support the vehicle.
  11. Drain the cooling system.
    GC0209788Courtesy of CHRYSLER GROUP, LLC
  12. If equipped, remove the skid plate four retaining bolts (2) and remove the skid plate (1).
    GC0209793Courtesy of CHRYSLER GROUP, LLC
  13. Remove the lower radiator hose clamp (1) at the water pump.
  14. Remove the lower radiator hose clamp (2) at the radiator and remove the lower radiator hose (3).
    GC0209798Courtesy of CHRYSLER GROUP, LLC
  15. Remove the left catalytic converter heat shield retaining bolts (1) and remove the heat shield (2).
  16. Remove both exhaust pipe/catalytic converters. Refer to CONVERTER, CATALYTIC, REMOVAL .
    GC0209865Courtesy of CHRYSLER GROUP, LLC
  17. Remove the starter (1). Refer to STARTER, REMOVAL .
    NOTE:

    It is not necessary to disconnect the refrigerant lines for A/C compressor removal.

  18. Remove the A/C compressor from the engine block and position aside. Refer to COMPRESSOR, A/C, REMOVAL .
    GC0209799Courtesy of CHRYSLER GROUP, LLC

    Left side shown, right side similar.

  19. Remove both engine mount (1) retaining nuts (2).
  20. Disconnect the transmission oil cooler lines from their retainer at the oil pan.
    GC0209794Courtesy of CHRYSLER GROUP, LLC
  21. Lower the vehicle.
  22. Remove the upper radiator hose clamp (1) at the thermostat housing and remove hose.
  23. Remove the upper radiator hose retainer (2) at the fan shroud and position the radiator hose aside.
    GC0209792Courtesy of CHRYSLER GROUP, LLC
  24. Remove both heater hose clamps (1).
  25. Remove both heater hoses (2) and position aside.
    GC0209803Courtesy of CHRYSLER GROUP, LLC
  26. Remove the cooling fan module (1). Refer to FAN, COOLING, REMOVAL .
  27. Remove the generator. Refer to GENERATOR, REMOVAL .
    GC0209801Courtesy of CHRYSLER GROUP, LLC
  28. Remove the intake manifold. Refer to MANIFOLD, INTAKE, REMOVAL .
    NOTE:

    The engine must be at room temperature before removing the oil control valve.

  29. Disconnect the oil control valve electrical connector (1).
  30. Remove the oil control valve retaining bolt (2).
  31. Rotate the oil control valve (3) to break the seal then pull the oil control valve straight out.
    GC0209800Courtesy of CHRYSLER GROUP, LLC
    NOTE:

    Do not use air tools to install the Engine Lift Fixture (special tool #8984C, Fixture, Engine Lifting).

  32. Install the Engine Lift Fixture (special tool #8984C, Fixture, Engine Lifting) (1).
  33. Securely tighten lifting fixture mounting bolts (2).
  34. Raise and support the vehicle.
    GC0209797Courtesy of CHRYSLER GROUP, LLC
  35. Remove the structural dust cover retaining bolts (1).
  36. Remove the structural dust cover (2).
    GC0209790Courtesy of CHRYSLER GROUP, LLC
  37. Remove the flexplate-to-torque converter retaining bolts (1).
    GC0209791Courtesy of CHRYSLER GROUP, LLC

    4x4 rear engine mount isolator shown, 4x2 rear engine mount isolator similar.

  38. Loosen but do not remove the rear engine mount isolator retaining bolts (1).
  39. Using a suitable transmission hydraulic jack, slightly raise the transmission and support the front of the transmission using a block of wood between the transmission and engine cradle crossmember.
  40. Remove the transmission hydraulic jack.
    GC0209816Courtesy of CHRYSLER GROUP, LLC

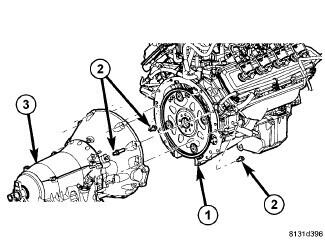

  41. Remove the transmission bell housing to engine block bolts (2).
  42. Lower the vehicle.
    GC0209800Courtesy of CHRYSLER GROUP, LLC
  43. Disconnect all remaining left and right engine harness electrical connectors and position the harness over to the right side of vehicle.
  44. Connect a suitable engine lifting devise to the Engine Lift Fixture (special tool #8984C, Fixture, Engine Lifting) (1).
  45. Separate the engine from the transmission and remove the engine from the vehicle.
    GC0209789Courtesy of CHRYSLER GROUP, LLC

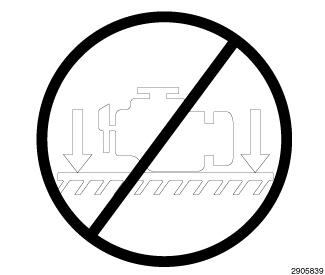

    CAUTION:

    Do not allow the engine to rest on the oil pan, the composite oil pan will not support the weight of the engine, damage to the oil pan or engine assembly may occur.

  46. Place the engine on a suitable engine stand.
